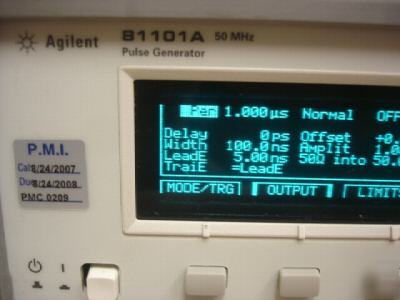

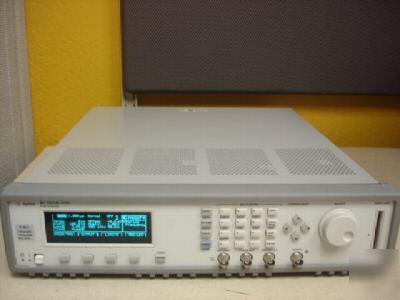

No. of channels: 1ch Frequency: 50MHz Pulse Width: 3.3ns The HP 81101A 50 MHz single-channel pulse generator is the low-end of the HP 81100-family. All timing parameters (repetition rate,delay, width and transitions) are variable. The instrument includes an additional PLL oscillator which allows the repetition rate to be set with 0.01% accuracy. Double-pulses and pulse bursts are available. These and single pulses can be triggered externally when the PLL is off. Bursts can also be triggered by the internal PLL when not in use as the repetition-rate generator. There is also an external width (pulse recovery) mode. The selectable 50 / 1000 ohm source resistance allows output amplitudes up to 10 or 20 Vpp respectively into a 50-ohm load. Family features: Common operation with the easy-to-use HP 8110A-type graphical user-interface Common programming: All HP 81100 models and the HP 8110A use th Selectable Pulse/Burst modes Variable transition times BNC connector Amplitude Range - Max 100mVp-p 50 ohm Amplitude Range - Min 10.0Vp-p 50 ohm THIS UNIT WAS PULLED FROM A WORKING ENVIRONMENT AND IT IS IN GREAT CONDITION. *** FULLY CALIBRATED WITH 30-DAY WARRANTY *** Product Condition/ Warranty/Return (this posting is the responsibility of the poster) |
