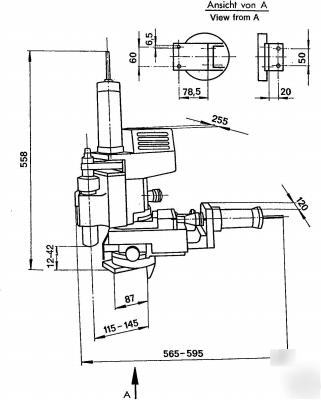

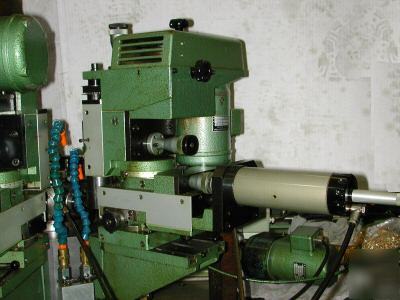

IMOBERDORF UNIT 05 DRILLING ATTACHMENT - ROTARY TRANSFER main slide stroke: 30mm (1.181") working stroke setting: 0-15mm (0 - .590") cross slide stroke: 25mm (.984") total stroke of vertical head: 20mm (.787") rapid feed (fixed): 10mm (.393") working stroke setting: 0-10mm (0 - .393") swivel range - unit in free position: 180 degrees - standard installation: 180 degrees free tool length: min 15mm (.590") 1 centering microscope, 25mm dia, with adapter 1 drilling and milling spindle Q3, max speed 23000 RPM Unit 05 can also be supplied multiple drilling head according to requirements Be sure to add me to your favorites list! (this posting is the responsibility of the poster) |
