Textron lancat system 6 sm mm fiber cable certifier


What do you have for sale (write here): Textron lancat system 6 sm mm fiber cable certifier

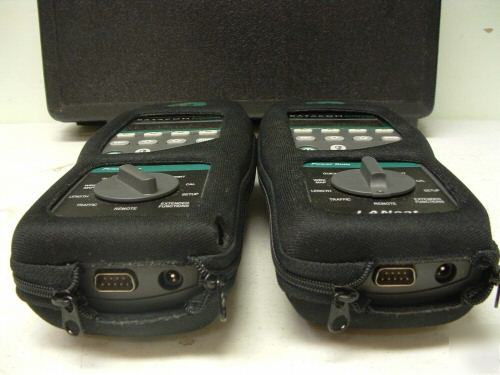

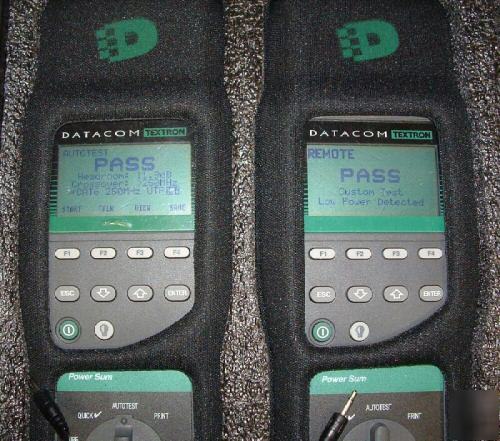

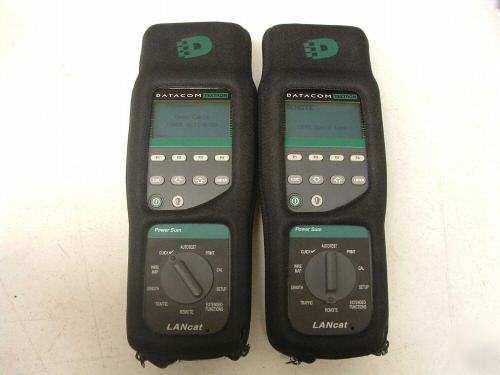

Textron Datacom LANCAT System 6 Cable Certifier
This Unit Is Currently In Transit From CALIBRATION!
Test and Certify Cat5, Cat5e, Cat6 up to 250MHz, 850nm, 1300nm, and 1550nm Cable Installations!
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty
LANcat System 6 will Test Cat5 Cat5e & Cat6 Up To 250 MHz
LANcat System 6 fully complies with EIA/TIA TSB-67 Category 5 and ISO/IEC Class D cable testing requirements, with accuracy exceeding Level II requirements. It will support the latest network protocols utilizing all four pairs such as Gigabit Ethernet and ATM 622. Measurements include Power Sum NEXT and Power Sum ACR to 100 MHz, plus Propagation Delay, Delay Skew, and CAT 5 headroom margin. LinkTalk is a feature that provides voice communication over the cables under test. Included is a built-in microphone, individual earphone, volume control, and call alert signal. The standard 1/8" jack on the handset allows the use of any earpiece in the event the original is lost or broken. LANcat System 6 can test beyond the proposed CAT 6/Class E frequencies of 200MHz and provide performance verification of Enhanced CAT 5 and Gigabit cabling performance to 250MHz. Both systems can store 1000 autotests, come with Report Management Software to download results to your PC.

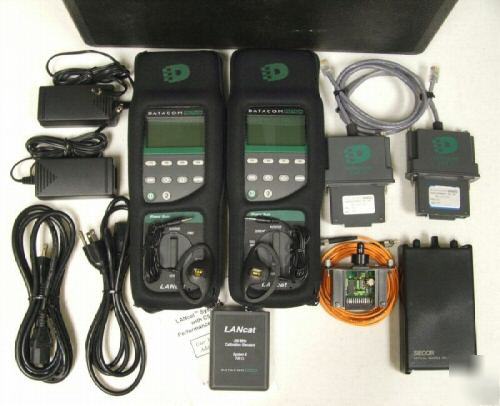

* Modular design for simple upgrades
* Measure up to 250MHz with System 6
* A high performance optical fiber power meter or loss meter. The Multimode loss testing on each fiber, MM 850 and 1300 nm
* (1) FiberCat Fiber Module adapter
* (1) 850nm & 1300nm Light Source
* (2) ST/ST Fiber Patch Cables
