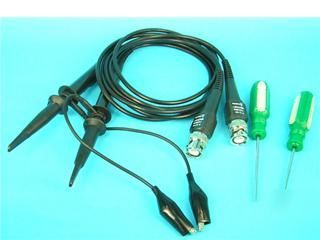

New 100MHz Scope Clip Probe for Oscilloscope *Operating Temperature: -10°C - +50°C *Non-operating Temperature: -20°C - +75°C *Humidity: ?85% (relative humidity) *Input Capacitance: 1X:85pF-115pF, 10X:14.5pF-17.5pF *Compensation Range: 15pF-35pF *Working Voltage:1X:<150V DC, 10X:<300V DC *To compensate the 100MHz probe, connect it to a 1kHz rectangle signal source (which most oscilloscopes provide) and adjust it with the included screwdriver until you can see a clear rectangle signal on your measurement screen. (this posting is the responsibility of the poster) |
