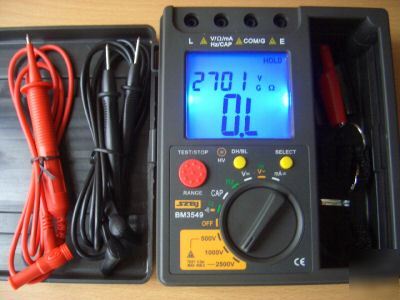

"Professional Digital 40G Ohms / 2500V Insulation & Multimeter" COMBINED FUNCTIONS OF INSULATION TEST AND MULTIMETER !!! HIGH ACCURACY & RELIABILITY WITH WIDE MEASUREMENT RANGE !!! COMPACT, RUGGED & HANDY DESIGN !!! . 40G Ohms insulation resistance test; . Selectable Test voltages 250V /500V /1000V / 2500V; . Selectable insulation measurment time 1min / 2min / 10min; . Both measured insulation value and test voltage on display; . General Multimeter functions available; . LCD display with backlight function; . High volt /Overload / battery low indication; Test voltage / measuring range: - 250V, 0.25M ohm to 400M ohms; - 1000V, 1.5M ohm to 40G ohms; - Accuracy: - 0.2M ohm to 200M ohms ( +/-3% + 5 ); - 200M to 4G ohms, (+/-5% + 5 ); . DC Volt Range: 400mV / 4V / 40V /400V / 1000V; . AC Volt Range: 4V / 40V / 400V / 700V; . DC Current Range: 40mA / 400mA; . AC Current Range: 40mA / 400mA; . Resistance Range: 400 / 4K / 40K / 400K / 4M / 40M ohms; . Capacitance Range: 40nF / 400nF / 4uF / 40nF; . Frequency Range: 40Hz / 400 / 4K / 40K / 400K / 4MHz; . Continuity Test with Buzzer; . Operating Temperature / Humidity: 0 to 40C, less than 70%RH; . Battery type: 6 X 1.5V ( AA ); . Dimensions: 170 x 156 x 64mm; - Holding box with hanging strip; QUANTITY DISCOUNT AVAILABLE !!! If the item damaged upon received, please send e-mail immediately with picture within 5 days. After the investigation, we decide to the replacement. - We regret not accept Personal Check; US local Postal Order. Don't hesitate to ask if you have any inquiry. (this posting is the responsibility of the poster) |
