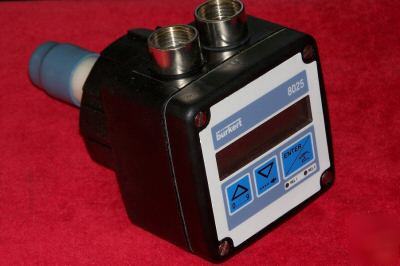

FLOW TRANSMITTER (BATCH CONTROLLER TYPE 8025) BURKERT. FLUID PRESSURE: MAX 10 bar (145 psi) FLUID TEMP: HALL SENSOR 0 TO 80 C (32 TO 176 F) MEASURING RANGE: WITH HALL SENSOR 0,1 TO 10 M/S (0.3 TO 32.8 FPS) MEASURING ERROR: SMALLER THAN 1% WITHIN 0.5...10M/S (1.6 TO 32.8 FPS) REPEATABILITY: 0.4% OF MEASURED VALUE. VOLTAGE SUPPLY: 12...30 VDC. BINARY INPUTS: 4 INPUTS, 5...30 VDC. INDICATOR LAMP OUTPUT: OPEN COLLECTOR NPN AND PNP, 0...30 V, 100 mA PROTECTED. RELAY OUTPUT: 2 RELAYS, 3 A 220 V, FREELY ADJUSTABLE. DISPLAY: 15X60 MM LCD 8 DIGITS ALPHANUMERIC, 15 SEGMENTS, 9mm HIGH. NEW. RETAILS FOR $1,026.00 OUR PRICE
(this posting is the responsibility of the poster) |
DSutton@dfwind.com (Deanna Sutton) for more information. All emails will be forwarded to the poster's actual email address.
