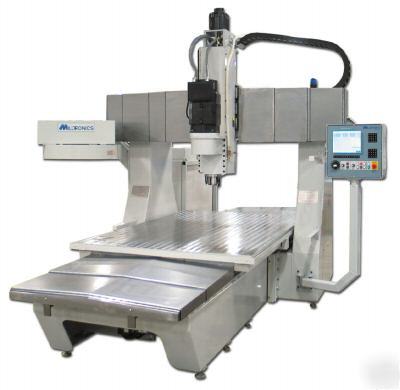

Call us at (***)-985-3857 or visit for addition info not listed below. Effective March 1, 2006 Rev. C Horsepower 1 minute / 30 minutes Optional Horsepower 1 minute / 30 minutes · Heavy Duty 45mm Linear Ball Way Construction · Precision Ground Double Anchored Ball Screws · #40 Taper, 8,000 RPM, Five Bearing Air Purged Spindle Cartridge Assembly · Spindle Taper Blow-out and Tool Release Push Button · High Torque AC Digital Servo Drives with 1000 ipm Rapids · 24/15 HP (18/11 kw) High Torque Closed Loop Vector Spindle Drive System · All Axes Laser Calibrated and Ballbar Inspected · Operator's Washdown Hose & Operator's Air Blast Hose · PC-based Centurion 7 CPU includes 2 Mb Parts Storage Memory Non-volatile motionless disk · 10" LCD Active Matrix Color Display with Tactile Keys · Conversational plus G & M Code Programming with 3D Part and Tool Path Graphics · Five Axes Simultaneous Interpolation Software and Interface · Auxiliary Keyboard Port for PC Keyboard · 6 Mb Virtual Disk / RS-232 with DNC Buffer · 1200 Block/Sec High Speed Processor · Automatic Home Sequence with Home Switches · Front Panel Mounted Electronic Handwheel Plus Handwheel Controlled Program Execution Automatic Metered Lubrication in Lieu of Grease Zerks Engraving, Helical Interpolation, Auto Routines, and User-definable Macros with Trig Assist Air Blast Nozzle Programmable by CNC Coordinate Rotating, Scaling, Mirror Image, Thread Mill Off-line FastCAM Software for Programming and Training 8 Mb Program Execution Memory with Large Program Management Software Single Spare “M†Function and CNC “Wait†Channel Items may be purchased separately Items may be purchased separately HIGH SPEED LARGE PROGRAM PACKAGE D Solid State, Non-Volatile, Memory Upgrade to 256 Mb Flood Coolant System Including Through Head Cooling, Six Nozzles, Coolant Trough, Tank and Wash Down On BR50 wash down is replaced with programmable spray mist On/Off Networking Option includes 30 Days Phone Support Additional 16 Mb Program Execution Memory Allows editing of 10 Mb programs Additional 10 Mb Parts Storage Memory (12 Mb total) Auto Import of DXF Files Conversion Software Multi Format Flash Memory Card Device Upgrade to 12" LCD Active Matrix Color Display with Discrete Keys “S†Curve Accel/Decel Ramp Modifier with Feed Forward and Look-Ahead for High Speed Machining or 3-D Milling Items may be purchased separately Items may be purchased separately Upgrade to 15,000 RPM Ceramic Bearing 60 mm Spindle Upgrade to 15,000 RPM Ceramic Bearing 70 mm Spindle – Requires the purchase of 70 mm upgrade in Package E Upgrade to Two-Speed 24/15 HP (18/11 kw) Wye/Delta Spindle Drive System (Recommend purchase of Package E) Upgrade to Two-Speed 35/25 HP (26/18 kw) Wye/Delta Spindle Drive System (Requires purchase of Package E) SPINDLE CONFIGURATIONS — HSK63, 45 HP (32 kw) WITH CHILLER Recommend Purchase of Package E 20,000 RPM Grease Spindle Cartridge Upgrade to 24,000 RPM Air/Oil Spindle Cartridge Spindle will drip some oil Transformer for HSK63 for 208-240 VAC to 440 VAC (HSK63 requires 440 VAC and Siemens Servo System) ENCLOSURE ACCESSORIES Requires Purchase of Package B (Not available on BR50) Side Machine Enclosure with Coolant Trough & Chip Wash down 24 Pocket Carousel ATC with Remote Tool Changer Control Panel 24 Pocket Arm ATC for HSK63 Spindle with Guarding GRAPHITE AND ABRASIVE MATERIAL ACCESSORIES Pressurized Air/Oil Purge System for Ball Screws and Bearing Blocks Requires purchase of Package C Torit Vacuum System Model DFT2.2MILL (Consider Environmental Noise) Dust Collection System — Consult factory Includes 4th axis amp & motor; Application may require riser 4th Axis Servo Amplifier & Motor (Electrics only) – Contact factory for 5 axis; Included with Rotary Table Accessory Programmable Spray Mist On/Off Spindle Chiller Loop (Reduces flood system to two nozzles, Standard with HSK63 Spindle) 6" 150 mm Riser Block in Columns Non-removable Spare “M†Functions – Block of 4 Maximum 2 blocks; price is for each block Contact Tool Offset Probing with Macros Work Offset Probing with Macros Digiscan Digitizing 3-D Software, Probe, Manuals Programming Manual in Electronic Format on CD Voltage 208-240 Three Phase (HSK63 spindle requires transformer listed under HSK63 Spindle above) Voltage 400-440 Three Phase (HSK63 must operate on 440VAC) Extended Parts Warranty from One to Two Years – With #40 Spindle Excludes HSK63 spindle Factory Start-up and Training On Site, U.S. only Includes travel expenses Training at Milltronics Includes lunches, training, materials and manual Milltronics reserves the right to amend or change without notice without incurring obligation. This product is not marketed outside the U.S.A. BR – Bridge Mill Specifications Effective March 1, 2006 Rev. C Table Size – Standard 100" Travel Table Size – Optional 150" Travel 6" 150 mm Hole Matrix, ½" x 13 Machine Weight – Standard Travel Machine Weight – Optional Travel Consult factory for higher load capacities Ball Screw Diameter: X 100"/150", Y, Z (mm) Ball Screw Pitch: X, Y, Z (mm) Premier Series Linear Way Type and Size Standard Horsepower 1 minute / 30 minutes Optional Horsepower 1 minute / 30 minutes Optional Horsepower 1 minute / 30 minutes Available with Premier Package E Standard Spindle RPM, Triplex Bearing Optional Ceramic Duplex Bearing Spindle RPM 100 - 15,000 Recommend Two Speed 8000 RPM Spindle Speed Ranges with 2 Speed Motor 15,000 RPM Spindle Speed Ranges with 2 Speed Motor ****** Tools should be balanced to 2.5 G's at 15,000 RPM ****** Tool Changer Time – Tool to Tool Maximum Tool Size (Diameter / Length / Width) 4" / 11" / 10 lb 100 mm / 280 mm / 4.5 kg SPINDLE – HSK63 (INCLUDES CHILLER) Standard Horsepower 1 minute / 30 minutes 20 ft-lb 2.7 kgf-m torque .1 - 12,000 rpm 45 HP 33 kw 12,000 - 24,000 RPM Optional Spindle RPM May drip oil AUTOMATIC TOOL CHANGER – HSK63 20,000 & 24,000 RPM SPINDLES Tool Changer Time – Tool to Tool Maximum Tool Size (Diameter / Length / Width) 5" / 11" / 15 lb 125 mm / 280 mm / 6.8 kg Diameter over 4" requires empty adjacent pocket Rapid Traverse X, Y, Z – 100" machine Rapid Traverse X / Y, Z – 150" machine Maximum Feedrate Part dependent ±0.001" .025 mm in 10" 250 mm single axis move; ±0.005" .127 mm over full travel area Positioning Repeatability see note Thrust, Machine Duty Rating, XYZ Automatic Metered Lubrication with Low Lube Fault Included in Performance Package C ¼ HP Flood Pump Capacity - Convenience Package B Power 208-240 VAC 50-60hz, 3Ø – 24 HP Power 208-240 VAC 50-60hz, 3Ø – 35 HP and HSK63 Power 208-240 VAC, Single Phase Power 400-440 VAC – 24 HP Requires Transformer Power 400-440 VAC – 35 HP Requires Transformer HSK63 Spindle Requires 440 VAC Power Parts: One year or 2100 hours, whichever occurs first on all normal failures. Service: One year or 2100 hours (whichever occurs first) from dealer or available from factory during second six months if air ticket supplied. Extended Parts Warranty for Second Year Parts warranty for normal failures for up to two years or 4200 hours, whichever occurs first. Note: Measurements performed with Renishaw laser and ballbar systems. Measurements are linear over entire travel. Temperature changes and table loads may affect tolerances. Tolerances are guaranteed over 10" sq. area. Centurion features covered under separate literature. For machine duty rating, see "Truth in Specifications" on www.milltronics.net. Milltronics reserves the right to change specifications at any time without incurring obligation. This is a New product with a back log, so figure and average of 8-10 week lead time. (this posting is the responsibility of the poster) |
