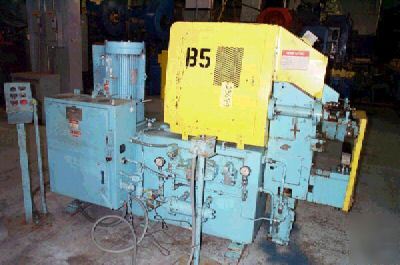

1-1/4" PINES #5T Pipe,Tube & Bar Bender, new 1978 [#609] Non-Ferrous Tubing Y.P. to 25,000 PSI: (2) 1" O.D. x .072" Wall, Mild Steel Tubing Y.P. to 40,000 PSI: (2) 1" O.D. x .065" Wall, Stainless Steel Tubing Y.P. to 60,000 PSI: (2) 1" O.D. x .049" Wall, Steel Pipe Schedule 80: (2) 3/8", Square Tube (Mild Steel): (2)7/8" x .035", Round Bar (Mild Steel): (2) 5/8", Square Bar (Mild Steel): (2) 1/2", Tube Size Range Up to 1-1/4" or (2) @ 1", Centerline Radius Range: (Permitting Bending to Maximum Angle) 3-1/2" Maximum C.L.R., 2" - 3" Minimum Work Diameter, Bend Angle: 140 Degrees Maximum, 165 Degrees with Special Tooling, Operating Pressure: 2,000 PSI, Production Speed: 2,000 Bends Per Hour, Heavy Cast Steel C-Frame Type Construction, Pedestal Mounted Push Button Operation, Bijur Automatic Lubrication System, Dimensions, Approx. 64" L-R x 87" F-B x 60" H (this posting is the responsibility of the poster) |
ericka_cain@dfwind.com (Ericka Cain) for more information. All emails will be forwarded to the poster's actual email address.
