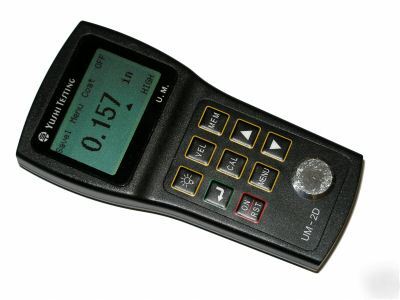

Ultrasonic Thickness Gauge / Tester with Through Coating or Paint Capability UM-2D High Resolution of 0.01mm or 0.0004 inch Do you know Krautkramer Tester? If "Yes", it is the time to consider UM-2D ! ** Well Made, Well Shaped, Well Performed and Well Priced ** !! One Year Worldwide Warranty !! ~~ 30 days Money Back Guarantee ~~ if you are not satisfied with our products email us if you have more concerns about the product or warranty for this item. Main Processor with Calibration block (4.0 mm) Dual Element (echo to echo) Probe - Display in mm and inch, Probe end Diameter: 8.00mm Consumer-Type 2 AA Type Alkaline Battery (3 Volt) Foam-Fitted Carrying Case to provide the best protection for the gauge The UM-2D is a simple to use, high accuracy, high resolution, hand-held Ultrasonic Thickness Gauge with the ability to measure through paint and/or coatings and even to eliminate the thickness of the paint or coating. The UM-1D now offers Through-Coating or Paint Thickness Measuring Capability - You can now test painted tanks, pipes, etc., without needing to remove the paint or make corrections for the paint thickness. * Measuring method: Ultrasonic pulse echo * Measuring range: 1.0 - 200 mm in Standard Mode or 3.0 mm - 23.0 mm in Through-Coating Mode * Display in both mm and inch * Accuracy: +/- (1%H +0.02) mm * Sound velocity range: 1,000 - 9,999m/s * Memory capacity: 500 test values * 4 digit LCD display with advanced backlight * Automatic power-off after being idle for 3 minutes * Resolution: 0.01mm (0.001inch) (thickness < 100.00mm) or 0.1 mm * Two Points Carlibration available * Power Supply: 2 X 1.5V AA Standard Batteries * Working temperature: -0 ºC ~ +60 ºC The following sample is with paint (red color) on it, the gauge can use "Standard" or "Through Coating" modes to check the sample. When "Standard" (Std) mode is used with UM-1D (0.1mm resolution), the gauge displays a value of 5.4mm, which includes the thickness of the paint and base material. After switch to "Through Coating" (Coat) mode, the thickness is 5.0 mm - this is the real thickness of the sample WITHOUT the paint layer. UM-2D at High Resolution mode displays an 0.02mm difference for a test block coverd by a coating layer. * Metal Materials: Al, Fe, Stainless Steel, Cu, Brass, Zn, Ag, Au, Sn,.... * Acrylic Resin, Water Glass, ... * Other materials with known sound velocity values. * Power supply: Battery: 2AA alkaline dry cells (2 X 1.5V) * Dimension: 149 mm X 73 mm X 32 mm * Weight: 168g (main unit); 30g (probe) * The tester comes with a standard PT-08 probe, a copy of operation manual, a carrying case, a can of coupling paste, a calibration block (4.0mm) built in the main unit as shown in the picture and two AA batteries. Four-Level Calibration Block ($29.99) and Echo to Echo Probe for Thru-Paint ($169.99) * ALL SALES ARE FINAL AND NON-CANCELLABLE. * Any inquiry please email us or "Ask Seller a Question". Thanks for looking and Ordering! (this posting is the responsibility of the poster) |
