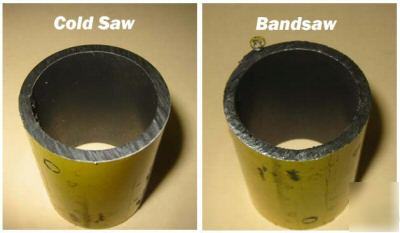

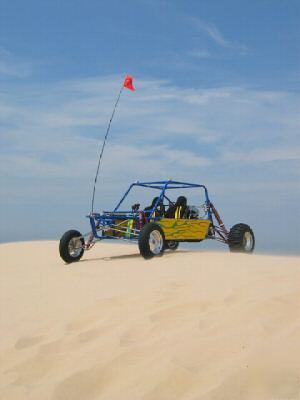

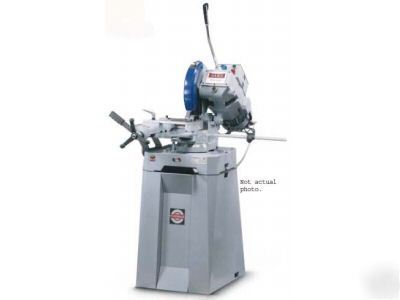

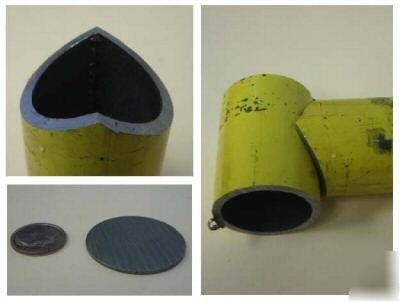

The most useful tool for the home builder or small shop. Perfect for all forms of chassis fabrication. There are no sparks and no heat during cutting. Your part is left with a high-tolerance, machined-like finish - no need to mill, sand, or smooth the end. You can also use the miter feature to cut perfect notches for tubing. We used a few different Dake machines to create many of the parts of the sand rail seen in the photos below. Other sizes and styles are also available. Maximum Blade Size: 10 in. with 32mm arbor Minimum Blade Size: 10 in. with 32mm arbor Minimum/Maximum Spindle RPM: 44 RPM Miter Cutting Capabilities: 45° right Controls: Handle mounted trigger switch Horsepower: 1.2 h.p. max. single phase Electrics: Avaiable in 120 or 230V Air: 90 PSI with optional pneumatic vise Lubrication: Flood type built into machine This single phase machine, allows precision cutting, with out the need for an expensive 3 phase power source, or phase converter. Heavy duty non production utility saw, comes with one standard HSS blade. Capable of near milled finish cuts with proper blade. Heavy duty gear box for long dependable life. All steel and bronze gears. No plastic gears to break. 2 ½†bronze gear ( not 1 ½†like most machines) with 6 splines for positive spindle mounting and sure grip.(Not a single roll pin like most machines) Handle mounted on / off trigger switch Miters right up to 45 degrees, and all angles in between. Set-up is precise using the scribed scale on the vise pivot. Vise incorporates a fixed anti burr arm, for burr free cuts. Vise is hand wheel adjustable for quick change over and repeat cutting. Heavy pivot point casting and pivot pin for balanced, rigid cutting. Blade guard completely covers the blade. Stock stop gauge for repetitive cutting. Tool kit for quick blade changes. Complete English owners manual, and blade pitch calculator. ____________________________________________________________________________ Highland Machinery offers a complete line of Dake equipment. Services include: * Pre-Sales Support - All the information you need to make a decision. * Test Cuts and Press Evaluations - You send us your material/parts, and we return the parts within 48 hours along with a written evaluation of: * Model used and recommended * Cutting/pressing criteria * Blade type or tonnage used * Fixture recommendation * In-House Hands-On Demonstration - Visit us to use a Dake machine in person. * After-Sales Support - Includes set-up training sessions and machine and process information. Other Cold Saw Available Include: * Manual, semi-automatic, and automatic operation * High tolerance, mill-grade cut quality * 10" - 14-1/2" blade sizes to cut up to 4" round and 4" x 7" flat * Heavy-duty spindle and gearbox * Come standard with blade, tool kit, coolant, pedestal base, adjustable stop, instruction/service manual, and saw blade selector calculator For any questions, please contact Jim Patterson or C J Pawlowski at See similar items and other fabrication equipment at (this posting is the responsibility of the poster) |
