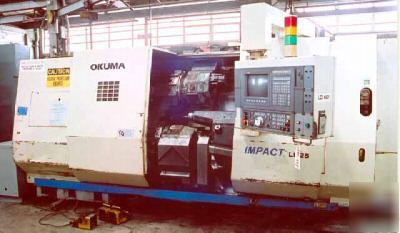

OKUMA IMPACT LU25-2SC/1250 4-AXIS SLANT BED CNC TURNING CENTER Okuma OSP7000L Advanced Multi-Processor CNC Control with Tool Path Graphics & Animation (with color graphics). IGF"One-Touch" Programming System. IGFL-3 Conversation. MacMan. Lap 4. 3.5" Floppy Disc Drive. User Task 2. RS232 60m Tape Storage. High Pressure Coolant. Cubic Warning Light Tower. Dual Pam Start. Auto Door. Tool Life Management. Robot Loader Interface. 9" Microcentric Chuck. Tailstock. Chip Conveyor. Coolant System. Miscellaneous Toolholders. Transformer. Mist Collector. Maximum Swing over Cross Slide 12.99" Maximum Cutting Diameter 16.54" Maximum Length between Centers 39" X-Axis Travel Upper Turret 11.81" X-Axis Travel Lower Turret 7.68" Z-Axis Travel Upper Turret 28.54" Z-Axis Travel Lower Turret 25.98" Spindle Speed Ranges (4) 65-3500 RPM Spindle Motor 30 min/Continuous 40 HP / 30 HP Number and Type of Turret 2 -Turret / VDI Number of Tool Positions Upper Turret 12-Position Number of Tool Positions Lower Turret 10-Position Tailstock Spindle Travel 5.91" (this posting is the responsibility of the poster) |
jody-welch@dfwind.com (Jody Welch) for more information. All emails will be forwarded to the poster's actual email address.
