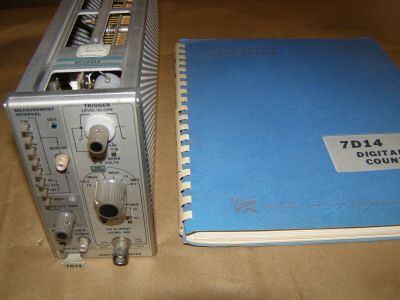

* Measurement Interval: 1 ms to 10 s * Impedance Input: 50-ohms & 1 Mohm * Time Base Stability: 0.00005% The Tektronix 7D14 Digital Counter Plug-In is a directly gated unit designed for use in all 7000-Series Oscilloscope mainframes except those without CRT READOUT. It will function in any plug-in compartment. It has three modes of operation including frequency ratio (A / B) 0 to 10E+05:1, frequency 0 to 525MHz, and totalize 0 to 10E+08. The Tektronix 7D14 counts directly to 525MHz. The gated approach makes possible "single event" counting which is frequently very desirable in rapid burst measurements. (this posting is the responsibility of the poster) |
