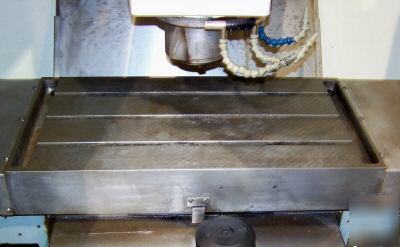

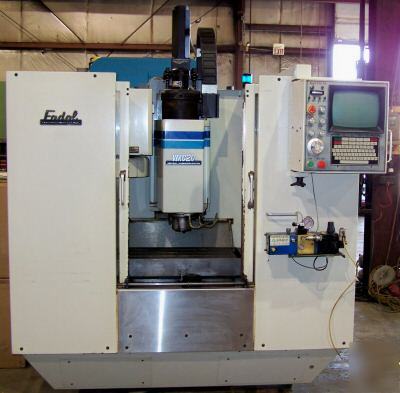

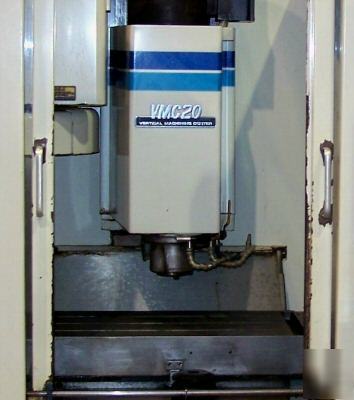

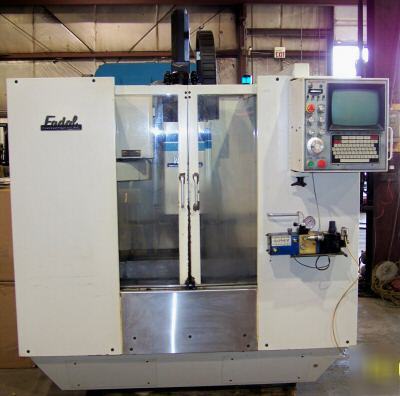

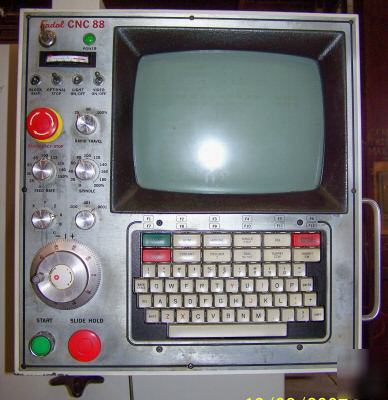

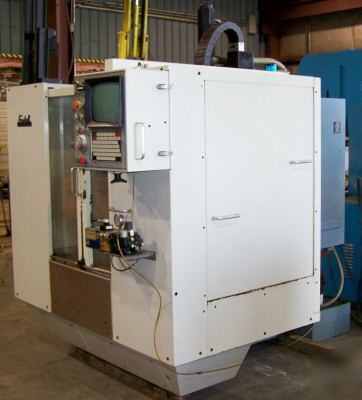

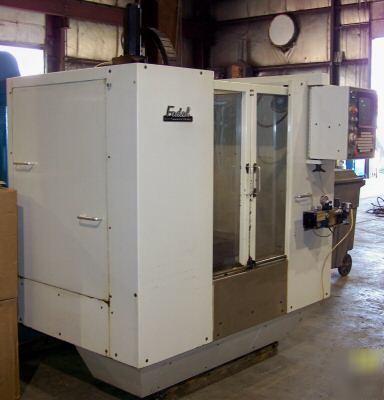

Available for your inspection and/or purchase at our Miamisburg, OH warehouse is this Excellent Fadal VMC 20, Vertical Machining Center. The model number is 904-2 and the serial number is 9105285. The machine was manufactured new in 1991. The CNC control is the extremely popular Fadal CNC 88. This unit is equipped with a 16 tool tool changer. The spindle speed is 7,500 RPM Maximum and the spindle nose is CAT 40. It was in operation producing aluminum parts when we purchased it two (2) weeks ago. Rated travels are: "X" = 20", "Y" = 16", "Z" = 20". The T-Slotted table size is 16" X 29 1/2". Main spindle motor is 7 1/2 HP. This machine is in absolutely excellent condition, throughout. Electrical requirement is: 230V/3PH/60CYC. Overall dimensions are: 78" L-R X 90" F-B X 97" Tall. It is also equipped with a Jektek Pneumatic work holding activator. TABLE SIZE......................... 29.5" X 16" TRAVELS (X)....................... 20" (Y)....................... 16" (Z)....................... 20" MAX. SPINDLE SPEED................. 7,500 RPM SPINDLE DRIVE...................... 7.5 HP TAPER.............................. CAT 40 NO. OF TOOLS....................... 16 CONTROL TYPE....................... FADAL CNC 88 Machine Tools of America and you can contact me (I'm Bruce) by phone at (***)-545-8475. Our fax is (***)-866-6668 or (***)-866-8514 and the office is (***)-866-8334, but we’re seldom there. (this posting is the responsibility of the poster) |
c.fitzgerald@dfwind.com (Corina Fitzgerald) for more information. All emails will be forwarded to the poster's actual email address.
