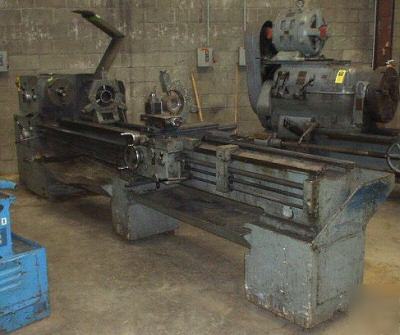

20"/28" x 120" SUMMIT GAP-TYPE ENGINE LATHE New 1980, Serial No 03476516, Model 19-4X120 Threading (Inch-Metric Full-Length Lead Screw) 12" 3-Jaw Chuck w/Jaws - 15" 4-Jaw Chuck 4-Way Tool Post - Replaceable Hard Ways Hole Thru Spindle...................... 4.125" Swing Over Bed Ways, Rated............. 20.5" Swing thru Gap......................... 28" Gap Length............................. 15.375" Swing Over Cross-Slide................. 12.25" Distance Between Centers............... 120" Cross-Slide Cross-Feed Travel.......... 13.75" Compound Rest Travel................... 6.25" (12) Spindle Speeds, Range............. 22 to 1500 RPM (56) Carriage Longitudinal Feeds....... .0009 to .112 IPR (56) Cross-Slide Cross Feeds........... .0004 to .056 IPR (56) Metric Feeds, Range............... .0235 to 2.84 (56) Thread Changes, Range............. 3/4 to 92 TPI (35) Metric Thread Changes, Range...... .25 to 23 (26) Module Threads, Range............. .25 to 11.5 (56) Diametral Pitch, Range............ 1.5 to 184 DP Main Motor, Horsepower................. 7.5 HP Overall Dimensions, L x W.............. 15'4" x 4' Overall Height......................... 5' Weight Approximately................... 7200 LBS PRICE: F.O.B. OUR WAREHOUSE........... $9,950.00 Note: RUNNING 220 VOLTS, MACHINE RUNS, FAIR TO POOR. THIS LATHE HAS CUT A LOT OF PARTS. All machines/equipment subject to prior sale. (this posting is the responsibility of the poster) |
T.miller@dfwind.com (Travis Miller) for more information. All emails will be forwarded to the poster's actual email address.
