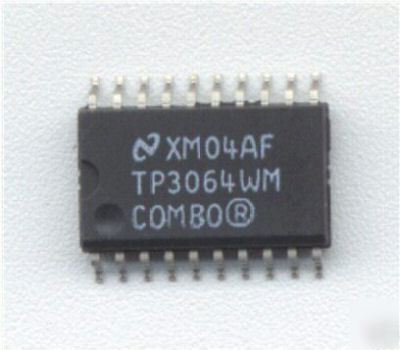

Now over 1,400 items in our Store! m-law) and TP3067 (A-law) are monolithic PCM CODEC/Filters utilizing the A/D and D/A conversion architecture shown in Figure 1, and a serial PCM interface. The devices are fabricated using National's advanced double-poly CMOS process (microCMOS). Similar to the TP305X family, these devices feature an additional Receive Power Amplifier to provide push-pull balanced output drive capability. The receive gain can be adjusted by means of two external resistors for an output level of up to g6.6V across a balanced 600X load. Also included is an Analog Loopback switch and a TS Complete CODEC and filtering system including: – Transmit high-pass and low-pass filtering – Receive low-pass filter with sin x/x correction m-law or A-law compatible COder and DECoder – Internal precision voltage reference – Internal auto-zero circuitry – Receive push-pull power amplifiers Designed for D3/D4 and CCITT applications Low operating power–typically 70 mW Power-down standby mode–typically 3 mW TTL or CMOS compatible digital interfaces Maximizes line interface card circuit density And we salute our friends in other countries around the world! (this posting is the responsibility of the poster) |
R.Campos@dfwind.com (Ryan Campos) for more information. All emails will be forwarded to the poster's actual email address.
