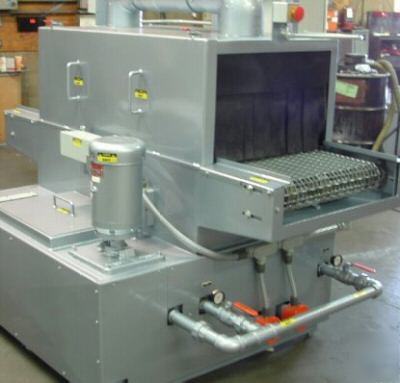

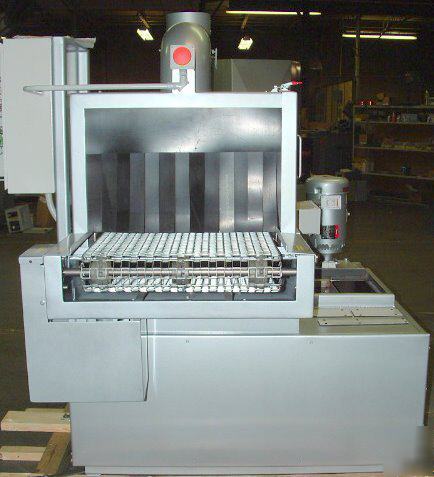

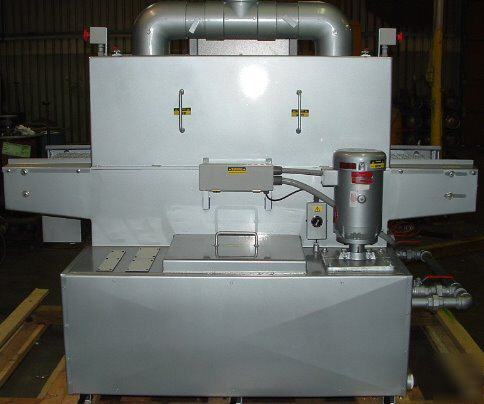

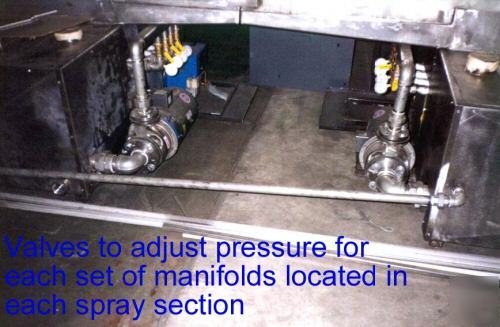

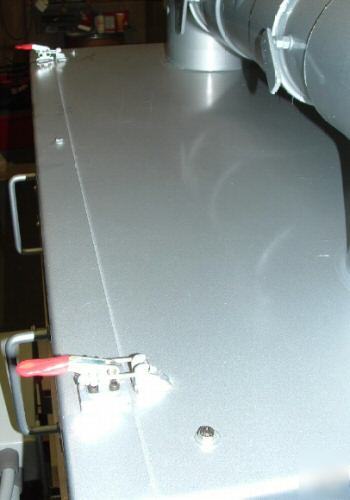

NEW MAJOR BRAND PASS THRU BELT WASHER This is a NEW unit to which you can add custom options. The continuous cleaning adds to your productive. Our goal is to help you find the best cleaning equipment available at an affordable price. Belt Conveyor parts washer - Mild Steel Construction Approximate overall dimensions: 84†long X 62†wide X 72†tall Part opening: 24†Wide X 15†Tall Breakdown of zones within the unit: * 16†(1’ 4â€) clear load area * 28†(2’ 4â€) spray wash zone * 12†(1’) drip/exit from wash * 16†(1’ 4â€) exit from wash Conveyor belt type: 24†Wide, 1†X 1†Galvanized Steel, flat wire clinched edge Max load of conveyor is 1,000 lbs. evenly distributed. Drive system: Variable speed, Direct Current (DC) Operating speed is 1 to 12’/min. with current sprocket-to-sprocket ratio. Tunnel accessibility: The tunnels are equipped with removable side panels for access to the entire interior of the tunnel. Tank accessibility: The solution tank is equipped with a large “lift-off†hatch to provide access to the tank for cleaning and/or service. “Closed-Loop†– Re-circulating Heat source: 36KW Electric heat Solution capacity: 200 Gallons-Insulated Drain: 2†Conveniently located for ease of draining. Basic conveyorized cleaning system in a mild steel configuration with wash section. The chip tray consists of a mild steel tray, which is mounted under the conveyor belt. This tray in turn diverts all of the solution to a central point in the tank access area, where it is forced to flow through an easily removable, mild steel perforated basket. After flowing through the basket, the water returns to the main tank. This option retains the majority of the sludge and particulate matter in the basket for easy removal. SO-100 – LOW WATER SHUT OFF (MILD STEEL), The low water shut-off incorporates an adjustable, 2†diameter, stainless steel float-switch that is to be mounted at such a distance above the heater so as to protect the heater in the event of a low-water condition. In the event that a low-water condition exists, the low water shut-off will turn off the heater and/or pump circuit(s), thereby protecting the heater and pump. Blow Dry Chamber Belt Sizes Ranger from 12" to 48" Wide Rinse Cycles Stainless Steel Cabinets and Plumbing Oil Skimmer CALL me with cleaning application question. We can arrange for a test wash of your parts at nominal cost. We have various financing options such as lease to own. (this posting is the responsibility of the poster) |
