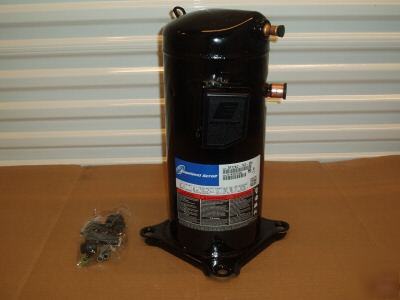

Copeland 6 Ton 460 Volt 3-Phase Scroll Air Conditioning Compressor COPELAND SCROLL COMPRESSOR DESCRIPTION: Air Conditioning Compressor, Nominal Power 6 HP, BTUH 73,500, Voltage @ 60 hz 460 Volts, Running Current @ BTUH 9.7 Amperes, Line Connection Discharge Inside Diameter 1/2 Inch, Line Connection Suction Inside Diameter 7/8 Inch, Base Mount Hole Center Size 7 1/2 Inches, Length 9 19/32 Inches, Height 17 1/4 Inches, Width 9 15/32 Inches, R22, Three Phase, Scroll Series. Base Mounting Centers (Inches): 7 1/2 BtuH: 73,500 Height (Inches): 17 1/4 Length (Inches): 9 19/32 Line Connection Discharge Inside Diameter (Inches): 1/2 Line Connection Suction Inside Diameter (Inches): 7/8 Run Amps @ BtuH: 7.8 Width (Inches): 9 15/32 Nominal HP: 6 Potential Relay.: - Volts: 460-3 Volts 60 Hz: 460-3 Start Capacitor:NOT NEEDED. - Run Capacitor:NOT NEEDED. Replaces Compressor Part Numbers: ZR72KC-TFD-522 ZR72KCTFD522 ZR72KC-TFD-950, ZR72KC-TFD-130/830, ZR72KC-TFD-950, CARB93424, CARZR72KCTFD950. LENNOX MODEL:GCS24-3003-470-1G. and test (if applicable) the item to the best of our ability. Feel (this posting is the responsibility of the poster) |
