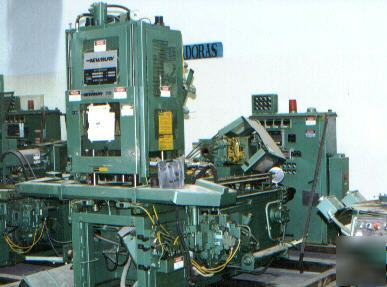

75 Ton, 5 Oz. Newbury Vertical Shuttle Press Model: V5-75BRS Style: C-Frame New: 1987 Mold Clamping Force ......................... 75 Ton Platen Size .............................. 10" x 10" Maximum Mold Space ........................ 8" x 10" Maximum Clamping Stroke ......................... 5" Minimum Closed Daylight ......................... 8" Maximum Closed Daylight .................... 10-1/2" Maximum Open Daylight ...................... 15-1/2" Center-Line of Injection .................... 5-1/8" Motor Horsepower ............................. 15 HP Machine Dimensions ................. 8'L x 6'W x 7'H Machine Weight ........................... 8,800 lbs C-Frame Design With Shuttle Table (26") 10" x 62" Shuttle Table with 26" Stroke Mopac 32 Solid-State Control Panel ** Injection Unit needs to be reassembled Moveable Platen Dual Knockout Cylinder (this posting is the responsibility of the poster) |
