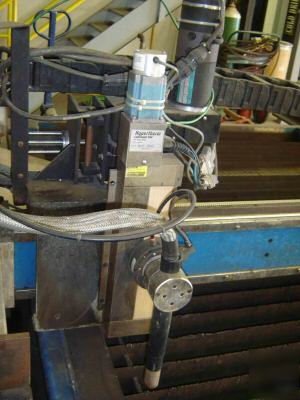

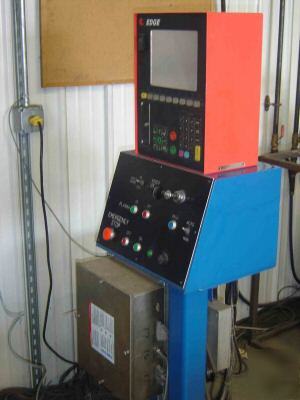

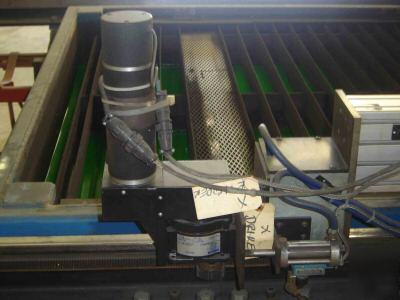

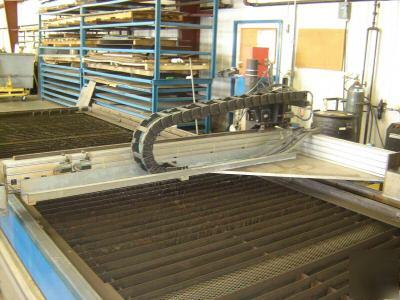

PRE OWNED 1996 SECTOR TECHNOLOGIES GANTRY STYLE PLASMA SYSTEM CENTER TO CENTER MACHINE RAILS †HYPERTHERM EDGE CNC CONTROLS (LEFT HAND MOUNTED) - WINDOWS EMBEDDED OPERATING SYSTEM - INDUSTRIAL GRADE SCREEN W/ 10.4†ACTIVE MATRIX TFT COLOR LCD - PROGRAMMABLE PLASMA SEQUENCE - > 1 GHz PROCESSOR W/ 512MB DDR RAM - > 30 GB HARD DRIVE AND 1.44†FLOPPY - ABILITY TO ACCEPT DIRECT DOWNLOADS OF .DXF FILES - DNC SOFTWARE FOR COMMUNICATION WITH AND OFFICE COMPUTER HYPERTHERM MAX100D PLASMA POWER SOURCE - ¼†MS @ 85 IPM (AVERAGE CUT SPEEDS) - ¼†STAINLESS @ 45 IPM (AVERAGE CUT SPEEDS) - ¼†ALUMINUM AT 45 IPM (AVERAGE CUT SPEEDS) HYPERTHERM CONMMAND AUTOMATIC TORCH HEIGHT CONTROL - BUILT IN OHMIC TOUCH RETRACT FOR ACCURATE, REPEATABLE PIERCE - BUILT IN COLLISION AVOIDANCE MTC TURBONEST NESTING SOFTWARE PACKAGE RACK AND PINION DRIVES IN X & Y AXIS’ POWER TRACK IN LONGITUDINAL AXIS, TYPE 22R HOSE AND CABLE CARRIER SYSTEM NITROGEN REQUIRED FOR PRE FLOW PLASMA SOURCE 21A @ 460V/3PH /60HZ (this posting is the responsibility of the poster) |
