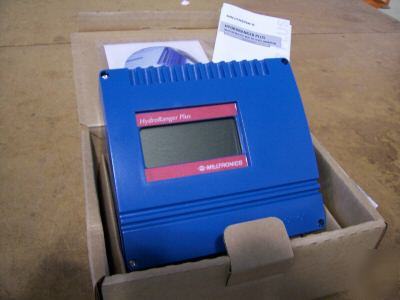

The HydroRanger Plus uses Milltronics non-contacting ultrasonic echo ranging technology and Sonic Intelligence™ software to monitor water and wastewater of any consistency up to 15 metres (50 ft.) in depth. The system is effective in wet wells, weirs and flumes where foam and turbulence are typical operating conditions. It can be customized to meet your specific application needs – from measuring flow rate in a narrow flume to volume in a ferric chloride storage bank. The system consists of the electronics housed in a wallmounted enclosure and a hermetically sealed, corrosionresistant Echomax® transducer. These components can be separated by up to 365m (1200 ft.). Optional submergence shields ensure consistent operation in wet wells where the transducer may be submerged during flooding from rainfall or a power outage. Milltronics’ patented detection software can differentiate between a submerged condition and a high level. The HydroRanger Plus is also available in rack and panel • Outputs for alarms, chart recorders, controllers and existing system integration • Monitors wet wells, weirs and flumes • Energy saving with a built-in real time clock • Anti-grease ring/tide mark build-up • Integrated temperature compensation • System monitoring and network analysis • ac: 100/115/200/230 Vac, ± 15%, 50/60 Hz, 15VA and/or • ambient temp.: -20 to 50°C (-5 to 122°F) • relative humidity: suitable for outdoor (Type 4X/NEMA 4X/IP65 • 0.3 to 15 m max. (1 to 50 ft.) • 0.25% of range or 6 mm (0.24"), whichever is greater • 0.1% of program range* or 2 mm (0.08"), whichever is greater • EEPROM (non-volatile), no back-up battery required • via removable programmer or optional Dolphin Plus • 0/4 to 20 mA, from alternate level monitoring device, scalable • 100 x 40 mm (4 x 1.5") multifield backlit LCD • Type 4X / NEMA 4X / IP65 enclosure • polyester/polycarbonate alloy • programmable fixed temperature • with compensation: 0.09% of range • fixed temperature: 0.17%/°C deviation from programmed • 250 V peak (transducer model dependent) • 5 alarm/control relays, 1 form 'C' SPDT contact per relay, rated • optically isolated 0/4 to 20 mA • compatible models: ST-H and Echomax® models XPS-10/10F, XPS 15/15F, XCT-8, XCT-12 and XRS-5 • coaxial to be RG62-A/U low capacitance • signal to be 2-3 copper conductors, twisted, with foil shield, drain wire, 300V 0.5 to 0.75 mm2 (22 to 18 AWG) • relay/power to be copper conductors per local requirements to • Dolphin Plus compatible via Milltronics ComVerter (this posting is the responsibility of the poster) |
