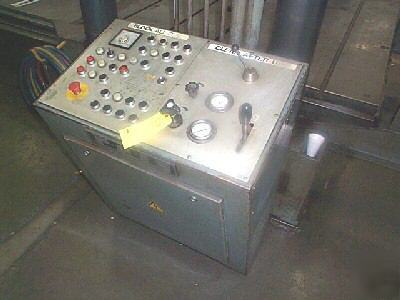

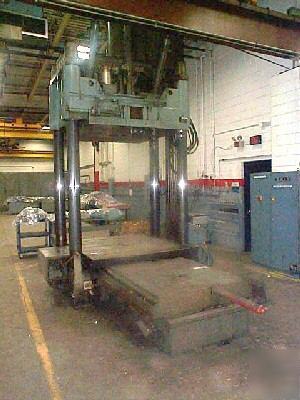

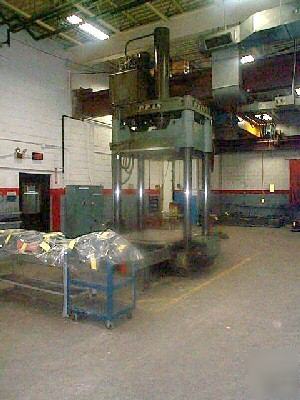

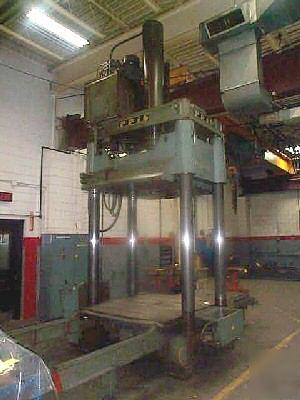

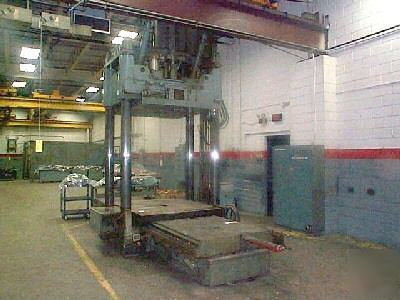

100 TON REIS MODEL TUS160-OK-100 HYDRAULIC SPOTTING AND TRYOUT PRESS Motor Driven With 15 HP, 3 Phase, 60 Cycle AC Main Hydraulic Drive. Complete With Controls For Platen Swing Up/Down. Lower Platen In/Out. Lower Platen Swivel. Upper Platen Up/Down. Lower Platen Lock/Unlock. 175 deg. Swivel Upper Slide. Hydraulic Shuttle Lower Platen. 175 deg. Swivel Upper Platen With Locking Mechanism. 50 deg. Tilting Bottom Platen. Adjustable Injection Unit For Mold Tryout Using Wax. (2) Pairs of Hydraulic Oil Sockets (Alternatively Energizing). Ram Pressing, Maximum: 0 to 100 Ton Ram Pulling, Maximum: 0 to 40 Ton Size of Upper Platen: 61" x 87" Size of Lower Platen: 71" x 87" Mold Weight, Maximum: 33,000 lbs Upper Mold Weight, Maximum: 13,200 lbs Ram Speed Rapid Traverse Approach: 165 IPM Ejector Unit Maximum Ejector Force: 3 Tons Metric Injection Unit: Maximum Injection Volume 2.6 Gallons Injection Pressure (Min - Max): 58 - 145 PSI Stroke of Injection Nozzle: 2.75" Approximate Weight: 47,000 lbs (this posting is the responsibility of the poster) |
tedmccormick@dfwind.com (Ted Mccormick) for more information. All emails will be forwarded to the poster's actual email address.
