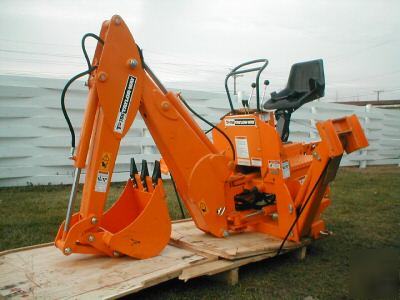

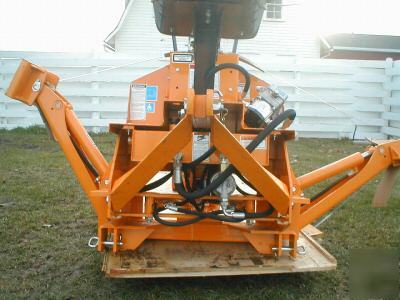

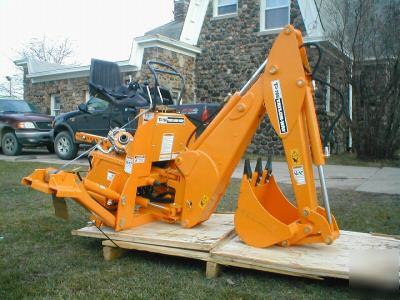

Taylor Way 766 Series, 3 Point, Catagory 1 Height with boom fully retracted 6’ 1 1/8†Width with stabilizers up 3’ 11 ½†Overall length including 3pt MRG kit 8’ 1†Operating weight with 12†bucket 1,027 lbs Overall operating height – fully raised 9’ 0†Loading height (bucket at 60 degrees) 5’ 10 ¾†Spread, operating position 3’ 11 ½†Eeservoir capacity- gallons 3-2/10 Relief valve setting (PSI) 2,610 Hydraulic oil - northern climates SAE10W40 Swing Arc - rotation 180 degrees Bucket - roatation 170 degrees 3 point category ……………………………………. Category 1 Tractor horsepower ………………………………..….25 – 50 HP Rated hitch lift capacity ……………..………….. 800 – 3800 lbs. GVW ………………………………..............……….. Up to 5000# GPM ……………………………………………………. 6 – 8 GPM Please call us at (***)-949-0822 for details. (this posting is the responsibility of the poster) |
