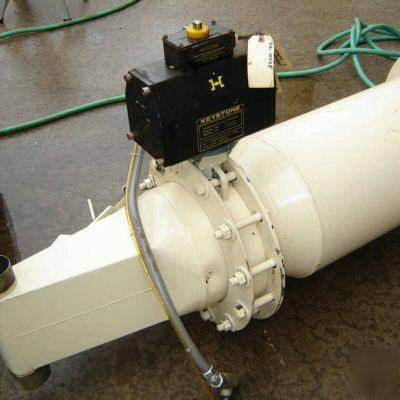

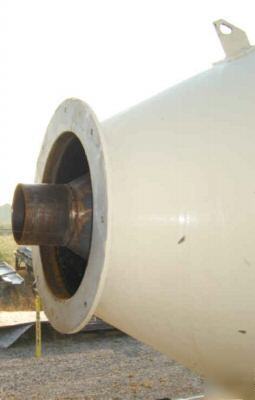

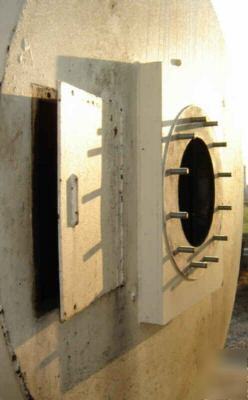

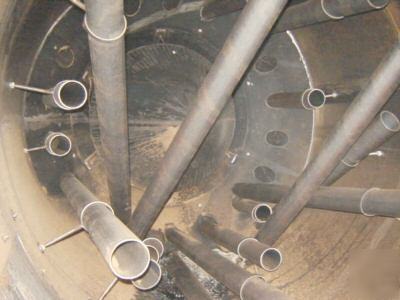

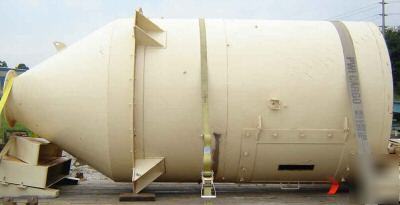

59†DIA. X 82†STRAIGHT SIDE LENGTH DOWN TO CONNECTING FLANGE. 8†STRAIGHT SIDE DOWN FROM CONNECTING FLANGE TO TAPER OF CONE AREA. 39†HEIGHT FROM 21.25†OUTLET FLANGE UP TO STRAIGHT SIDE OF BIN. 15.5†I.D. OUTLET. BIN HAS FOUR LEG GUSSETTS WELDED ONTO UPPER FLANGE OF BIN SO THE BOTTOM CONE SECTION CAN BE SEPARATED FROM MAIN BIN WITHOUT COMPLETE DISMANTLING OR REMOVING THE SUPPORT LEGS. BIN HAS FLANGED INLET THAT IS 12†I.D. DIA ON A 19.5†X 24.75†RECTANGULAR RISER 2.5†ABOVE TOP OF BIN. THERE IS A 13.75†X 10†INSPECTION PORTAL WITH HINGED COVER ON TOP OF BIN AND 31†X 37†ACCESS DOOR ON THE SIDE 10†DOWN FROM THE TOP OF BIN WITH AN 11†X 2 ½†VIEWING PORT IN THE CENTER OF THE DOOR. SEE PICTURES FOR UNIQUE BLENDING TUBES OF DIFFERENT LENGTHS AND ANGLES INSIDE MAIN BODY OF BIN AND INVERTED CONE MATERIAL DISPERSION DEVICE. BINS ARE PAINTED CARBON STEEL AND IN VERY GOOD CONDITION. COMES COMPLETE WITH FLANGED BUTTERFLY VALVE WITH ACTUATOR ON OUTLET SECTION WITH 4†PNEUMATIC CONVEYING TUBE BELOW BUTTERFLY VALVE. WE HAVE PLAN DRAWINGS FOR THIS ITEM SEE ALL OUR STORAGE AND BLENDER BINS AT (this posting is the responsibility of the poster) |
C-Harper@dfwind.com (Clare Harper) for more information. All emails will be forwarded to the poster's actual email address.
