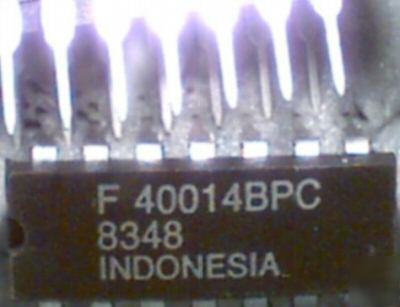

(50) F40014BPC HEX SCHMITT TRIGGER INVERTER CD 40106BPC EQUIVALENT, CMOS NOS DIP ICs New, old stock (NOS ICs). These F 40014 CMOS ICs, equivalent to 40106-type CD40106 / CD40106B, MC140106 / MC140106B, HEF40106 / HEF40106B, HCF40106 / HCF40106B, SGS40106 / SGS40106B, TC40106 / TC40106B, and other CMOS 40014 ICs. The very popular, useful and versatile 40014 CMOS IC is a low dissipation Schmitt Trigger IC that should meet your schmitt trigger and inverter digital needs. With a schmitt trigger, output switching is usually much cleaner in an electrically noisy environment than using an ordinary gate, making them particularly useful for pulse shaping, sine-to-square wave conversions, monostable multivibrators and astable multivibrators. A common problem encountered with ordinary non-Schmitt Trigger inverters with less than very fast rise times and very fast fall times (e.g. sinewave inputs) is that at about 1/2 Vcc input voltage enough uncertainty can exist that the inverter switches several times during input signal rise and fall around this voltage level, resulting in a noisy output. However, the Schmitt Trigger's innate hysteresis prevents virtually all of these types of problems. ICs come in anti-static tubes. (this posting is the responsibility of the poster) |
