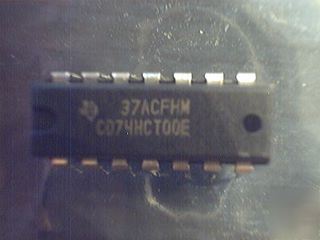

CD74HCT00E - High-Speed CMOS Logic Quad 2-Input NAND Gate *NEW* The CD74HCT00 logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. All devices have the ability to drive 10 LSTTL loads. The 74HCT logic family is functionally pin compatible with the standard 74LS logic family. • Typical Propagation Delay: 7ns at V • Fanout (Over Temperature Range) - Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads - Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads • Wide Operating Temperature Range . . . -55 • Balanced Propagation Delay and Transition Times • Significant Power Reduction Compared to LSTTL Logic ICs • Alternate Source is Philips/Signetics IL = 30%, NIH = 30% of VCC at VCC = 5V - Direct LSTTL Input Logic Compatibility, V IL= 0.8V (Max), VIH = 2V (Min) Data Sheet: http://focus.ti.com/lit/ds/symlink/cd74hc00.pdf (this posting is the responsibility of the poster) |
