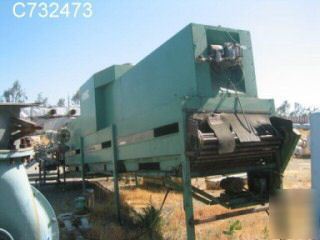

FMC Sta-Fresh Dryer, Agricultural Mach Division, model WDA-426G, s/n 48888-3. Unit is 4' wide x 26' long roller belt dryer with 1-3/4" dia rollers on 3" centers, running on incline draft with an Economite mdl F4DON33 burner, natural gas, rated for max of 625,000 btu/hr pressure, 5" - 14" water column, 1/6 hp fan motor on 120v. Drive is approx. 2 hp v-belt drive thru 20:1 gearbox ratio chain sprocket drive. Discharge is 5' off floor, inlet is 2' off floor.
(this posting is the responsibility of the poster) |
AAdams@dfwind.com (Aaron Adams) for more information. All emails will be forwarded to the poster's actual email address.
