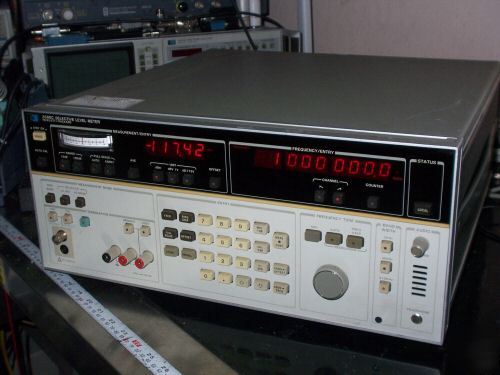

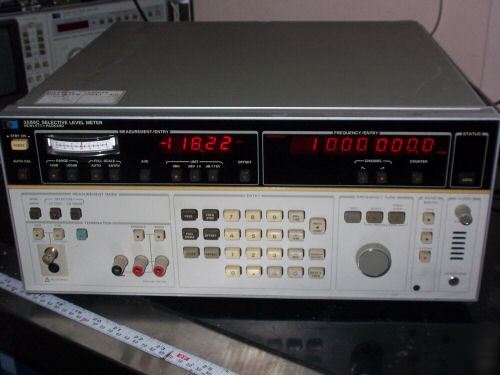

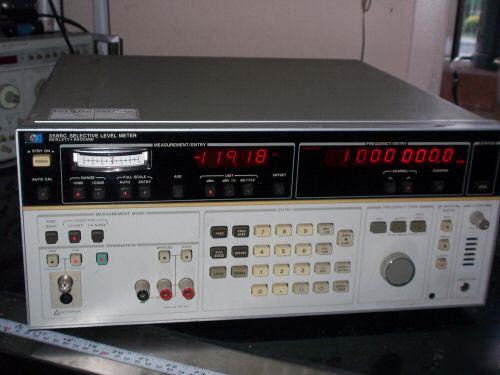

HP 3586C Selective Level Meter The HP 3586C selective level meter finds applications in general- purpose wave analysis for the design, manufacture, and maintenance of electronic systems. The HP 3586C is fully HP-IB programmable and covers the frequency range of 50 Hz to 32.5 MHz. This allows you to measure audio, sonar, and other low-frequency systems, as well as high-frequency communications subsystems. The HP 3586C provides input impedances of 50, 75, and 600 ohms with 10 K ohms bridging for maximum measurement flexibility in a wide variety of applications. Measure signal levels with up to ± 0.2 dB accuracy down to -80 dB, with 0.01 dB resolution and bandwidth choices of 20, 400, or 3100 Hz. The built-in counter and narrow-resolution bandwidths allow harmonic and intermodulation measurements to be made with ease. Frequency can be set or measured with 0.1 Hz resolution and 10 ppm stability. Good luck and thank you for looking! * California purchases are subject to 8% California sales tax (this posting is the responsibility of the poster) |
