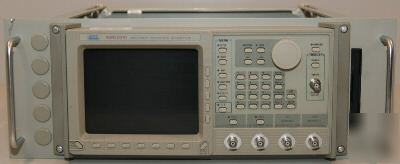

Tektronix AWG2041 Arbitrary Waveform Generator 1 GS/sec w/Options 01 03 09 1R Tested and Working with Current Calibration Option 01: Increase Memory to 4 M words Option 03: ECL Digital Data Output Option 09: Adds Fast Fourier Transform Editor - Allows Editing Waveforms in the Frequency Domain Option 1R: Rack Mount - Floppy Drive Access Moved to Front Calibration Date: 040407 - Certification of Calibration Included Includes Print Edition of User Manual (Not Shown) Tektronix AWG2041 Arbitrary Waveform Generator Features: * 1.024 GS/sec Clock Rate Provides up to 500 MHz Waveforms * Region Shift Provides 10 ps Edge Placement * 8-Bit (1/256) Vertical Resolution * Direct DSO Waveform Transfers * 8-Bit 1 GHz Digital Data Generator * FFT Editor - Frequency Domain Editing * Real Time Waveform Sequencer Creates Automatic Test Sequences or Extremely Long Patterns Almost Infinitely * Formula Entry of Waveforms * Fully Programmable from Front Panel, RS-232, or GPIB Tektronix AWG2041 Catalog Pages: Tektronix AWG2041 Catalog Page 1 Tektronix AWG2041 Catalog Page 2 (this posting is the responsibility of the poster) |
