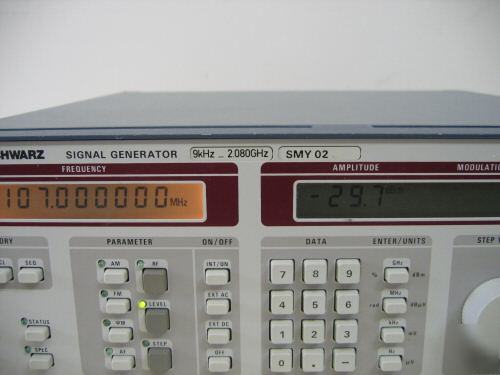

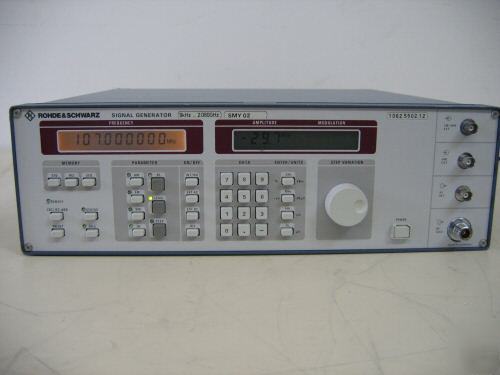

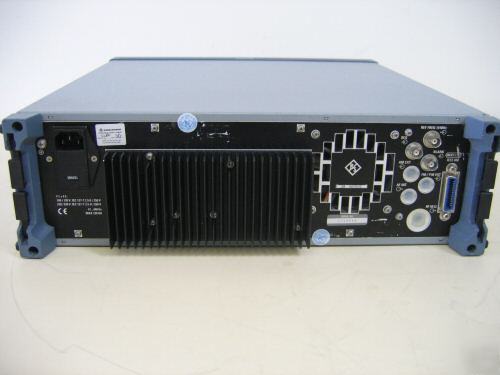

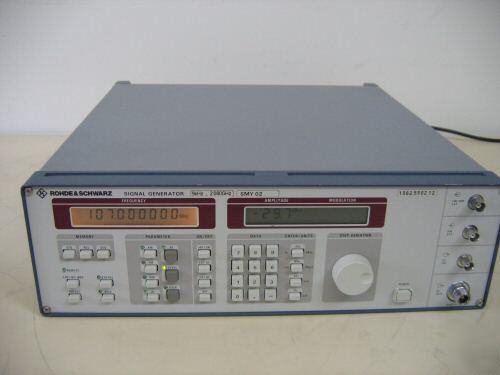

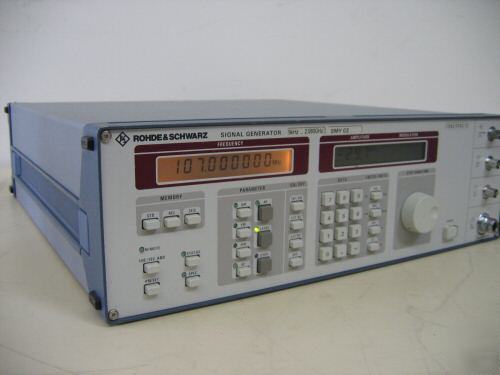

R&S SMY02 Signal Generator, 9 kHz - 2.08 GHz * Description: The R&S SMY 02 Signal Generator is a cost effective unit designed exclusively for the primary applications of signal generators, without unnecessary functions that would otherwise add to the expense of the instrument. Features and specifications include: * Frequency resolution 1 Hz * Level range -140 to +19 dBm, overrange up to 25 dBm (option) * Level accuracy better than 1 dB * SSB phase noise <-114 dBc at 1 GHz, Df = 20 kHz * AM, FM, jM and pulse modulation * Modulation generator 1 Hz to 500 kHz * RF overload protection 50 W * Low RF leakage (<0.1 mV) * Calibration at 3-year interval * Level range -140 dBm to +13 dBm (19 dBm overrange) *), sufficient even for receivers of highest sensitivity * High level accuracy and low RF leakage allowing accurate and undegraded sensitivity measurements * FM-DC with high accuracy of carrier frequency for testing pagers and receivers fitted with digital squelches * Low SSB phase noise and high spurious rejection for all in-channel and blocking measurements * Low residual FM affording ample of margin for S/N measurements * Modulation generator 1 Hz to 500 kHz for modulation frequency response measurements * Stereo channel separation of 50 dB and low harmonic distortion for testing FM stereo receivers * Non-interrupting level setting over a range of 20 dB for reproducible measurement of squelch hysteresis * Frequency resolution 1 Hz, suitable also for narrowband test items * FM-DC, deviation up to 20 MHz for VCO simulation * FM bandwidth 2 MHz for fast FSK and telemetry applications * High output level up to 19 dBm (25 dBm with option SMY-B40) for component and overdrive testing * AF synthesizer 1 Hz to 500 kHz, separate use as AF signal source for external applications possible, eg recording of AF frequency response * Remote-control interface IEC625/ IEEE488 for use in automatic test systems * Sequence function and SEQ input for semi-automatic use * Working Condition: Presumed Good but Untested. The back-light on the amplitude/modulation LCD does not work (as pictured). It does not affect operation and can still be viewed just fine (unless you like to work in the dark). We have not evaluated the cost to repair it, however, we do not expect it would be too much. * Other Comments / Notes: None * Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details). We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent. (this posting is the responsibility of the poster) |
