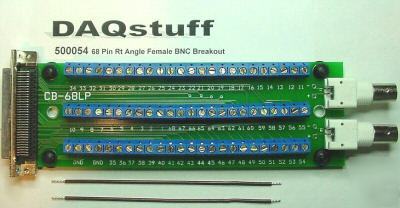

This will connect to a National Instruments "M Series" VHDCI System VHDCI - MD68 6' (male-male) Cable (#100570) & CB68LP (#500054)Breakout w/ 2 BNC Connectors #500055 68 PIN SCREW TERMINAL with Female Connector and BNC Connectors for use with NATIONAL INSTRUMENTS This will connect to a National Instruments M Series VHDCI System CB-68 Female Right Angle BREAKOUT with Rubber Feet and BNC Connectors with a VHDCI 6' Cable THIS IS A MUST HAVE FOR INTERFACING TO THE OUTSIDE WORLD * Qty 1 #100570 VHDCI Male to MD68 Male 6' Cable * Qty 1 #500054 68 Pin Right Angle Female with 2 BNC connectors * PIN to PIN connections * 1 PIN TO 1 SCREW * Numbers clearly marked * 4 Extra screw terminals for a common earth ground (SCREW TERMINALS 69 THRU 72) * Two configurable BNC Connectors * Two jumper wires for the BNC Connectors * Custom connect any terminal to the BNC Connectors THIS BREAKOUT IS BRAND NEW AND DOES NOT HAVE ANY BLOWN TRACES Need a Power Supply ? We have a GREAT Selection of +5V, +12V and +3.3V (this posting is the responsibility of the poster) |
