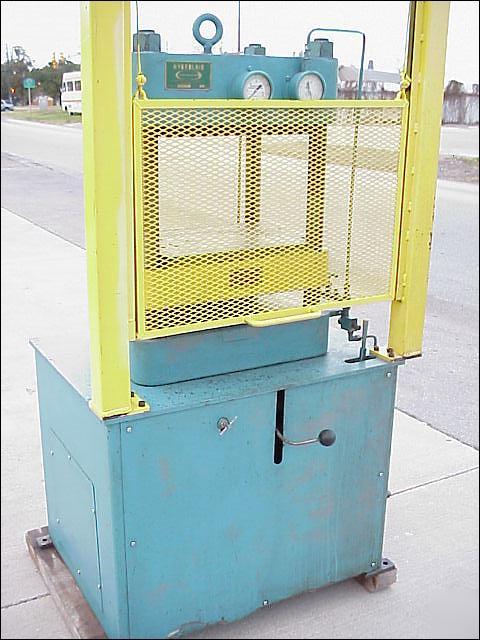

GREENERD 50 TON AIR OVER HYDRAULIC 4 POST PRESS Condition : USED / EXCELLENT / NICE MACHINE Click on picture boxes below to see more pictures, use your back button to return to listing. GREENERD HYDROLAIR 50 TON HYDRAULIC 4 POST PRESS, SERIAL # 73H1073 This press provides an economical way to add 50 tons of metal stamping or forming capabilities to your shop without the high cost of running a 10HP power pack cuz it's an air over hydraulic press, it develops hydraulic pressure from what's called an air intensifier much like a air operated hydraulic pump such as Enerpac, OTC, Blackhawk, etc does. Since this press operates off of shop air you can have 50 tons of press power out of a small home based shop for stamping, blanking or forming parts for Harleys, Ornamental Iron projects, aerospace, race car or any other related fields. Unit operates off of 100 psi shop air and uses a 6 inch diameter hydraulic ram for the press part of it, ram speed is going to be slower since it's air over hydraulic but the end result is still the same, 50 tons of power on the bolster plates for your pressworking or forming needs. Overall dimensions for this machine are 42 inches wide x 30 inches deep by 90 inches tall with all the yellow guards in place, machine without the guards is only 69 inches tall. Actual press area is 24 inches wide x 18 inches deep, maximum daylight without the plates you see pictured is 14.125, with the plates it's 12 inches, plate thickness is 1.125, machine has a 6 inch stroke, post diameters are 2 inches, distance between posts is 18.5 inches wide x 12 inches deep. This should give you enough information to see if your die sets or pressing application will work in this machine. Machine works great, ram seal seeps a little but nothing major, easy enough to replace too if you have too. Machine is heavier than it looks, my guess around 4000 lbs, we can load for free if you want to pick up at here in or you can see what kind of rate you can get from freightquote.com, if you want to arrange carrier you use, either way we'll load it for free. I also have this press available locally for sale too so I may pull the listing if you don't tell me your interested. Check my other listings too or contact me for whatever your looking for cuz I may just have it, you never know?. HAVE A QUESTION ?, ask John........alissa.young@dfwind.com.......ph. (***)-201-9908 If you wish to learn more about Boulevard Bikes click HERE Used items are guaranteed to be in the described condition, however if you are my abilities describe or picture any damage I am aware of but please understand, I do not have X-Ray vision thus there could be something I have overlooked or not readily visible by the human eye on the item above. I have no desire to misrepresent Most of my items are steel & very heavy or precision instruments that will require extra care in packaging, thus I want you to receive the item in the condition you Boulevard Bikes cannot be held liable for any typographical errors in this listing. Copyright © 2008, Boulevard Bikes. The contents of this ad my not be duplicated (this posting is the responsibility of the poster) |
