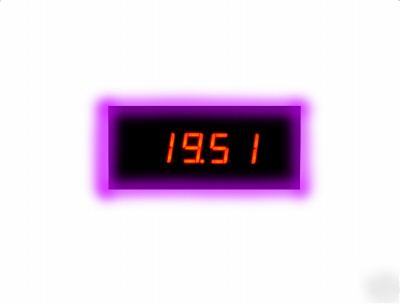

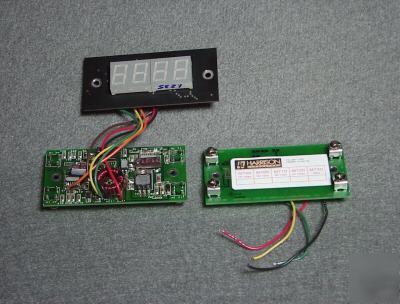

"It's A Harrison!" Another fine USA made original panel meter with 3-1/2 digits of large .6" high red LEDs. This DC panel meter includes a short length of 4 conductor hookup cable (12 volts DC positive power, 12 volts DC negative power, input signal positive, and input signal negative) mounting hardware, smoked acrylic bezel, and clear instructions. This lab grade panel meter has 4 wire connections to minimize effects of mis-wiring that can normally cause ground loop errors. Accuracy is approximately 1% for all ranges. Solder jumpers are available to change the decimal positions and full scale voltage ranges from 0 - 199.9mv, 0 - 1999mv or 1.999v, 0 - 19.99v, 0 - 199.9v, and 0 - 1999v scale practical limit of 300 volts. The Hlabs temperature probe can be directly connected to the voltmeter with no other equipment needed (up to 150 degrees F). Shown in the photo are the following options available. Please visit http://store.hlabs.com/pk4/store.pl?section=10 for details on the options. The following options are not included in the listed price. The backboard is available in 4 configurations and mounts to the rear of the VM-1 panel meter: AC hertz (built in 12 volt isolation power supply for meter), AC volts (built in 12 volt isolation power supply for meter), AC amps, DC amps (built in 12 volt isolation power supply for meter) and backboard with terminals only for DC basic VM-1 board. Also available is a thermocouple amplifier with built-in ice point junction which allows you to measure very high temperatures. Also pictured is one of our current shunts for measuring high amperes. This product was designed used in yachts and firetrucks but is suitable for most any application requiring a low cost accurate meter.
