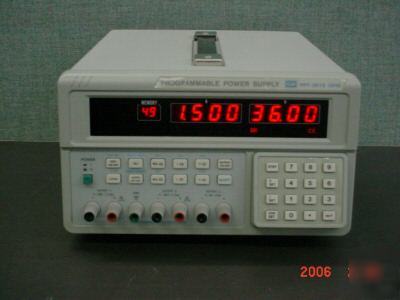

Instek PPT-3615 Triple Output Programmable DC Power Supply * High Resolution: 10mV, 1mA * Self Test and Software calibration * Range programming modes:Auto * Output 1 Max. power:54 Watts * Output 1/Range 1 Max. Current:1.5 A (0 V to 36 V) * Output 1/Range 2 Max. Current:1.5 A (0 V to 36 V) * Output 1/Range 3 Max. Current:3 A (0 V to 6 V) * Voltage Programming Accy Output1/Range1:6.9444E-04 % * Current Programming Accy Output1/Range1:6.6666E-02 % * Voltage Programming Accy Output1/Range2:6.9444E-04 % * Current Programming Accy Output1/Range2:6.6666E-03 % * Voltage Programming Accy Output1/Range3:4.1666E-03 % * Current Programming Accy Output1/Range3:3.3333E-03 % * Voltage Readback Accy Output1/Range1:6.9444E-04 % * Current Readback Accy Output1/Range1:0.0067 % * Voltage Ripple and Noise:2000 uV * Current Ripple and Noise:3 mA * Load Regulation, Voltage:6000 uV * Load Regulation, Current:6 mA * Line Regulation, Voltage:3 mV * Line Regulation, Current:3 mA * Programming Response Time:100 ms * Programming Resolution(% of full scale): 0.027 % * Remote Sensing Measurement:No * Multiple Unit Combinations:Auto-Parallel,Series * Overvoltage Protection:Yes * Overcurrent Protection:Yes * Over-temperature Protection:No * User Interface:Proprietary * Ports to Peripheral Devices:GPIB * Test Pattern Storage:50 Patterns * Our hours of operation are M-F, 10-5PM Pacific Standard Time. Phone: (***) 257-2445 Fax: (***) 257-6310 (this posting is the responsibility of the poster) |
