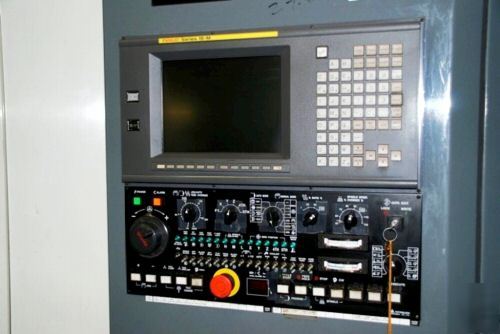

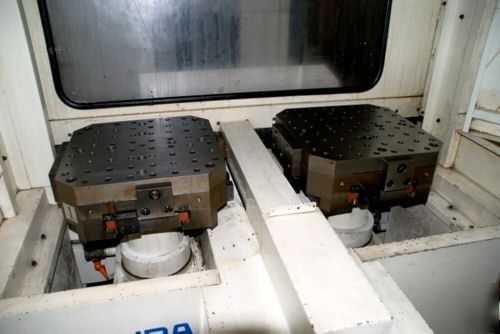

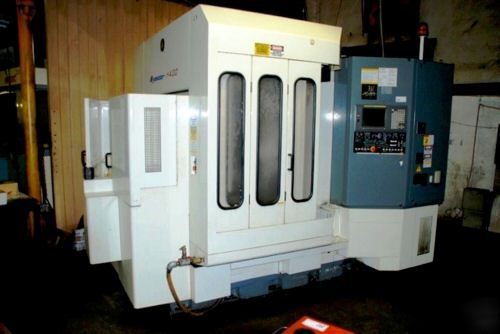

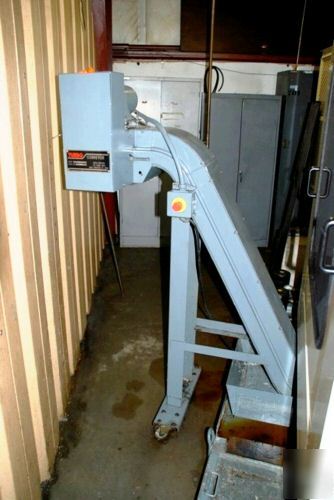

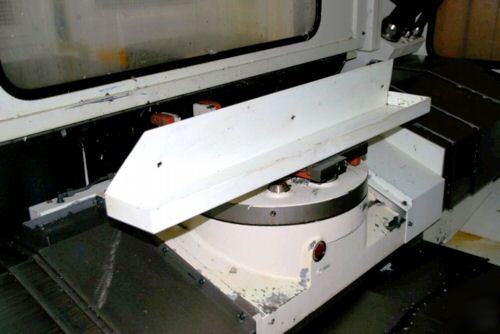

KITAMURA MODEL H-400 CNC HORIZONTAL MACHINING CENTER Motor Driven With 20/14.7 HP, 3 Phase, 60 Cyle, AC Voltage Spindle Motor. Motor Driven Coolant and Lubrication. (2) 15.7" x 15.7" Pallets, 100 ATC, Fanuc 15-M CNC Controls, RS-232C Port for DNC Operation. Flood Coolant. Equipped for Coolant Thru Spindle. Automatic Way Lubrication. (2) Kurt 6" x 6" x 21" Cluster Towers, Turbo Chip Conveyor. Pallet Indexing: .001 Degree (4th Axis) Spindle Center To Pallet Top: 2" - 21.8" Spindle Nose To Pallet Center: 6.3" - 26.4" Cutting Feed Rate: 0.01 - 393.7 IPM Spindle Speeds (2 Speed Geared): 60 - 10,000 RPM Tool Changer Capacity: 100 ATC Tool To Tool Change Time: 1.7 Seconds Chip To Chip (W/ Tool Orientation) Min 7.5 Seconds @ 60 Hz. Approx. Machine Dimensions: 132" X 132" X 122" Approx. Machine Weight: 24,000 LBS (this posting is the responsibility of the poster) |
jasmine.britt@dfwind.com (Jasmine Britt) for more information. All emails will be forwarded to the poster's actual email address.
