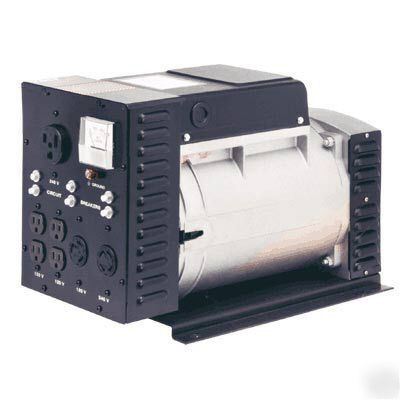

25 kW (25,000 Watts) Output - Heavy Duty Brushless Design * Heavy Duty Brushless Belt Driven Generator Head packs 25 kW (25,000 Watts) * Our compact, brushless generators have low 6% or less total harmonic distortion — safe for computers and TVs. Generates 120 and 240 Volt power simultaneously. Input shaft turns clockwise and counterclockwise * Add a minimum 50 Hp engine and produce portable electric power! * Heavy duty brushless design for reliable performance and low maintenance * Requires a 50 Hp engine or larger to operate * Control box contains 100 Amp circuit breaker, voltmeter and utility receptacles of one 120 Volt, 20 Amp duplex receptacle. Also has two locking plug receptacles (One 30 Amp, 120 Volt and one 30 Amp, 240 Volt) * For horizontal application only * Required Engine: 50 Hp (3600 rpm) or greater * Rated Watts: 25 kW (25,000 Watts) Continuous * Surge Watts: 30 kW (30,000 Watts) Surge * Two 20 Amp 120V receptacles * One 30 Amp 120V locking plug receptacle * One 30 Amp 240V locking plug receptacle * Uses NEMA 5-20R & NEMA L14-30R plugs * Brushless design, less than 6% Total Harmonic Distortion * 33mm diameter x 2" input shaft; 13/32" x 1.5" key way * Thermal overload protection * Conveniently located control panel * Push button circuit breakers * Overall Dimensions: 29.75" L x 15.75" W x 15.5" H * 2 Year Parts & Service Manufacturer's Warranty (this posting is the responsibility of the poster) |
