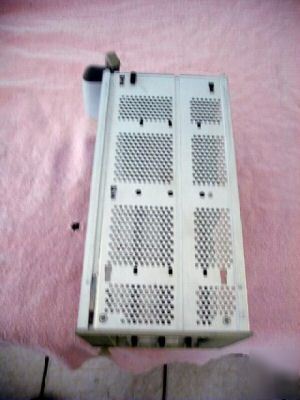

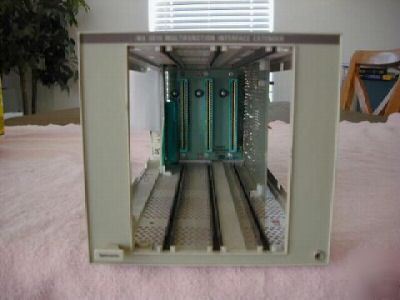

The MX5010 plugs into the side of the MI5010 with flex cable. Both units then plug into the TM5000 series mainframes as shown below. Total space used in the mainframe will be 4 positions. All cards plug in to the MI5010 plugin. Cards rapidly slide in and out of the MI5010 and MX5010 system for a fast flexible approach to test. Alternatively, for dedicated applications, card configuration can be secured in the MI5010 and MX5010 with rear locking screws. Cards are programmable by GPIB or front panel connector. Reasonable offers are always well come. REASONABLE ONES! This is my website for more equipment you may need: http://aaaequipmentresources.com/index.html (this posting is the responsibility of the poster) |
