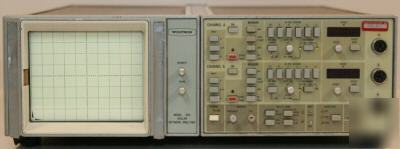

Wiltron Scalar Network Analyzer 10 MHz to 40 GHz Model 560 with Option 3 Wiltron 560 Scalar Network Analyzer Specifications: * Frequency Range: 10 MHz to 40 GHz * Dynamic Range: 71 dB (+16 dBm to -55 dBm) on Channels A and B * Dynamic Range: 46 dB (+16 dBm to -30 dBm) on Channel R * Directivity: 40 dB up to 18 GHz, 32 dB up to 26.5 GHz, 30 dB up to 40 GHz * Detector Return Loss: 22 dB from 0.04 to 8 GHz, 17 dB up to 20 GHz, 13 dB up to 26.5 GHz, 12 up to 40 GHz * Two channels may be used to simultaneously display any of the following: A, B, R, A-R, B-R * Amplitude Resolution: 0.01 * Option 3: IEEE 488 and IEC625 Interface http://www.us.anritsu.com/products/ARO/North/Eng/showProd.aspx?&ID=520 * Tracking number will be emailed to you when it becomes available. (this posting is the responsibility of the poster) |
