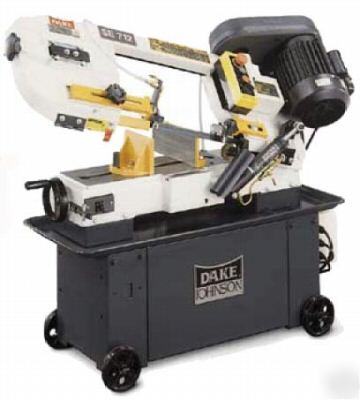

Dake Johnson SE712 shown in picture above. Machine Type: Horizontal Scissors Type Round: 90 deg - 9"; 45 deg - 3-1/2" Flat: 90 deg - 9" X 12"; 45 deg - 3-1/2" X 7-1/2" Blade Speeds (4): 98 / 164 / 246 / 328 fpm Head Feed Type: Hydraulic controlled gravity with start / stop and regulation Coolant Pump Type: Self contained with 1.5 gallon coolant tank Vises (quick set type): Mitering (45 deg) with quick release adjustment Electrical: CE approved / thermo overload, low voltage protection / push Lubricant: Wet model flood type unit built into the machine Medium duty, utility saw, comes with one standard blade. Hydraulic controlled, gravity feed head, for hands free cutting. Hydraulically variable head feed control for regulation of head feeding rate. Machine automatically shuts off after cut is complete. Cast one piece head frame and large pivot bar for rigidity and longer life. Gear box uses only the highest quality bronze and steel gears. Gear box is driven via a V-belt and step pulleys for fast speed changes. Low voltage switches. Thermal overload protection, low voltage protection. Vise has quick release for quick changeover of material sizes. Rotate vise handwheel counterclockwise to release vise nut, slide the free moving vise to material and clamp part turning the handwheel clockwise. This saves time and energy when changing material sizes. Horizontally mounted guide arms for more rigidity and straighter cuts. Guides Chip brush keeps the gullets of the blade clean. The wheel design of this chip brush turns with the blade for more efficient and longer life cleaning. Table bed is cast and machined for rigidity and quality cutting. Base is fabricated from heavy-gauge steel with wheels to allow moving the saw to any location for use anywhere with 120V power. This wet-cutting machine incorporates a self-contained removeable coolant pump and 1.5 gallon reservoir, filtering system, flow control valve, and on/off The saw is guarded for operator safety. Rear blade cover is hinged so removal of guards to change the blade is not needed. Wheels are cast lip and grooved design. Blade tension is done with mechanical mechanism. Clearly marked and simple to use controls and safety interlocks. Room for storage in the steel base. Owners manual and 1 year warranty. For any questions, please contact Jim Patterson or C J Pawlowski at (Just click on the Highland Machinery logo at the top of this page) (this posting is the responsibility of the poster) |
Laurie.hardin@dfwind.com (Laurie Hardin) for more information. All emails will be forwarded to the poster's actual email address.
