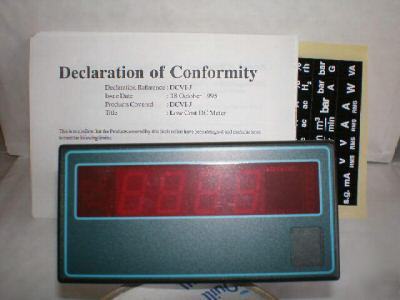

A low-cost robust, attractive 1/8th DIN display-only meter, ideal for general purpose monitoring applications. They are 3 1/2 digit with detatchable screw terminal connections for ease of installation and maintenance. Calibration adjustments are made using multiturn zero and span potentiometers. They are powered from 230AC mains, and are sealed to IP54. Panel cut out is 45 x 92mm, bezel size is 48 x 96mm, overall depth is 100mm, max width behind panel is 98mm, and depth from front of mounting panel is 85mm. Display Type: High brightness red LED Power requirements: 230V AC, <4VA Made by London Electronics, Model number: DCI-J-R-240 VAC (this posting is the responsibility of the poster) |
