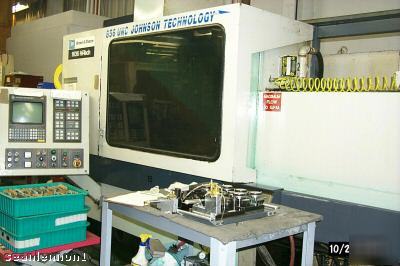

General Specifications....... CAPACITIES: Max. work width x length 16" x 36" ....... Max. height under 20" dia. wheel 15.25" ....... Wheel size standard 20" x 5" x 8" I.D. SPINDLE: ....... Type: Variable speed....... Horsepower standard 60 HP @ 1250 RPM ........ (40-1800 RPM) DIAMOND ROLL:.......... Type: Over the wheel ........ Roll size 4"-6" Dia.(52mm I.D.) ....... RPM-4500 to +4500 RPM....... TABLE (X-Axis): Max.table travel 40" ....... Table drive Ball screw....... Range of speeds 0.4 - 960 IPM....... CROSS FEED (Z-Axis): Max.cross travel 11"........ Continuous cross feed rate 0-225 I.P.M. ....... Incremental feed rate 0.00004"-0.5"....... Resolution with A-B 8200 0.000010"....... Position speed 2251 I.P.M........ VERTICAL FEED (Y-Axis): ....... Max. vertical travel 19.25" Rapid travel rate 40 I.P.M. Minimum incremental feed 0.000020" Resolution with A-B 8200 0.000010"........ Motor Specifications 60 HP Grinding wheel motor........ Equipped With Allen Bradley 8200 CNC controls ......... 60 HP Grinding wheel motor ....... 6 1/2" Wide wheel ........ Serial Number 523-6236-1014...... Year 1990........
