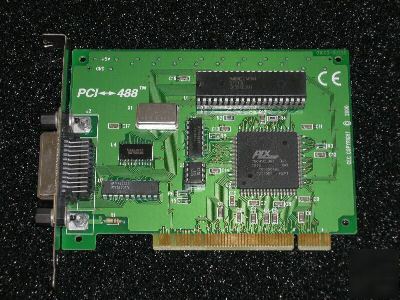

CEC GPIB IEEE 488.2 Standard PCI Interface Controller CEC GPIB IEEE 488.2 Standard PCI Interface Controller This item is priced and packaged without any accessories, cables or software. PCI-488 implements all required and optional features of the IEEE-488.2 specification in controller or device mode as a talker and listener. 100% compatible with existing applications running on our other IEEE-488 cards. Based on CEC-488 custom GPIB chip. Driver can be downloaded by following the link below: We highly recommend that you purchase a service plan coverage along with this equipment in order to protect your valuable investment. You can purchase a service plan coverage by following the link below: Commands: All IEEE-488.2 functions and commands supported. Commands and data can be combined (macro commands and assigned a user defined name. Addressing: Programmable IEEE-488 address. Transfer Speeds: Full IEEE-488 rate (>1MB/Sec) Modes: System controller and device mode. Additional features common to all products: Parallel and serial port emulation Interactive test utility (DOS and Windows) BASIC, QBASIC, Professional BASIC7, Visual BASIC for DOS and Windows Delphi Quick C for DOS and Windows C, C++, Visual C++, Watcom C TestPoint, hpVEE, LabVIEW, LabWindows CVI Universal language driver provides support for languages not listed. DOS, Windows 3.x, 95, 98, ME, NT, 2000, XP, and OS/2. WE DO NOT ACCEPT PERSONAL CHECKS. WARRANTY: ALL SALES ARE FINAL: RETURNS OF PRODUCT, OTHER THAN WITH DEFECT, ARE SUBJECT TO A 20% RESTOCKING FEE. * PLEASE INSTALL OR TEST ITEMS PROMPTLY UPON RECEIPT. IF YOU HAVE ANY QUESTIONS, PLEASE FEEL FREE TO EMAIL US. (this posting is the responsibility of the poster) |
