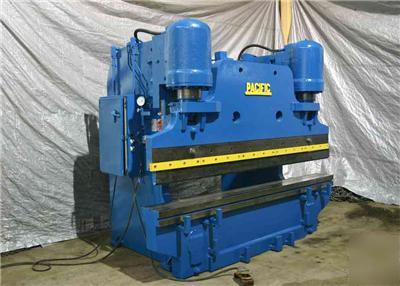

300 TON X 10' PACIFIC HYDRUALIC BRAKE 30 HP SERIAL ................................... 9289 MODEL .................................... 300-10 CAPACITY ................................. 300 TON OVERALL LENGTH OF BED & RAM .............. 120" DISTANCE BETWEEN HOUSINGS ................ 6'4-1/2" STROKE OF RAM ............................ 12" OPEN HEIGHT .............................. 18" CLOSED HEIGHT ............................ 6" DEPTH OF THROAT .......................... 15" RAM SPEED RAPID APPROACH ................. 122 IPM RAM SPEED FAST PRESS ..................... 59 IPM RAM SPEED SLOW PRESS ..................... 24 IPM RAM SPEED FAST RETURN .................... 127 IPM RAM SPEED NORMAL RETURN .................. 51 IPM ELECTRIC FOOT TRIP ....................... YES BRAKE IS FLUSH FLOOR MOUNTED ............. YES BRAKE IS MILLED & DRILLED FOR ANGLES ..... YES MOTOR .................................... 30 HORSEPOWER (this posting is the responsibility of the poster) |
mwoodard@dfwind.com (Marc Woodard) for more information. All emails will be forwarded to the poster's actual email address.
