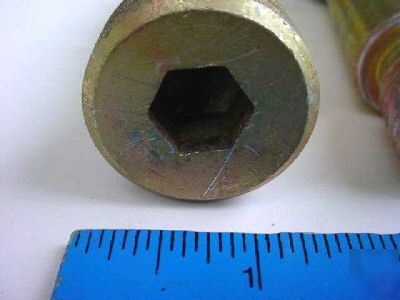

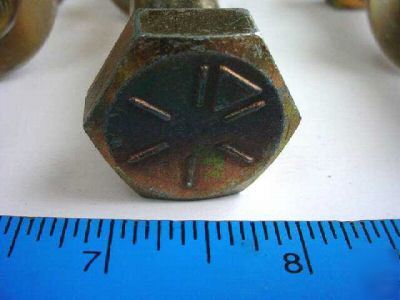

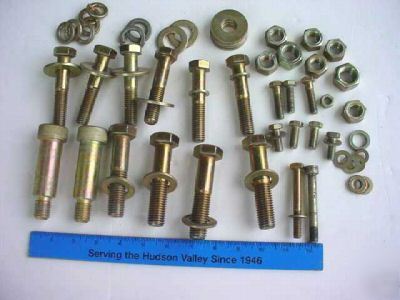

1) Four bolts, coarse thread, 3 1/2" in length, 3/4" in diameter, 1 7/8" thread length, 1 5/8" non-thread length. 2) Two hex nuts, 3/4" in diameter, 1 1/8" wide, 5/8" in height. 4) Six flat washers, 1/8" thick, 1 1/2" O.D. 5) Six bolts, coarse thread, 3 1/4" in length, 9/16" in diameter, 1 5/8" thread length, 1 5/8" non-thread length. 6) Six hex nuts, 9/16" in diameter, 15/16" wide, 9/116" in height. 7) Six lock washers, 1/8" thick, 1" in diameter. 8) Four flat washers, 3/32" thick, 15/16" in diameter. 9) One bolt, 5/16" in diameter, coarse thread, 3" in length, 1 1/8" thread length, 1 7/8" non-threaded length. 10) Two bolts, 3/8" in diameter, coarse thread, 1 1/2" in length, 1 1/16" threaded length, 3/8" non-threaded length. 11) One 3/8" coarse threaded bolt, 1 1/4" in length with lock washer and nut. 12) Nine 13/16" flat washers for 3/8" bolts. 13) Four fine thread 1" bolts, 3/8" in diameter. 14) One fine thread bolt, 2 15/16" in length, 5/8" threaded length, 2 5/16" non-threaded length, 3/8" hex socket cap screw. 15) Two socket head shoulder screws, 2 1/2" in length, 1" in diameter, 13/16" threaded length. (this posting is the responsibility of the poster) |
