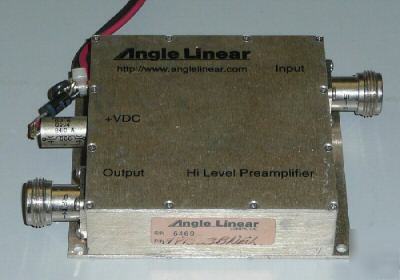

Angle Linear High Intercept Preamp 150-230 MHz Angle Linear Model HY1523BNEL in working condition USED High Level Hybrid Silicon Bipolar Preamplifiers with +40 dBm IP3, 2.3 dB Noise Figure with LOW PASS FILTER These amplifiers were originally developed for NASA and represent the best in Silicon Bipolar Transistor (SBT) amplifier design available today. The use of hybrid combined medium power SBT's provide high dynamic range and give better reliability than single stage amplifiers. These amplifiers have moderate gain to provide a higher system dynamic range. Quadrature hybrid combiners assure a good input & and output return loss over the entire operating passband. All tuning and signal path capacitors are ATC 600F low loss microwave type. As always, Angle Linear guarantees unconditional stability of every preamplifier we make. Gain +/- 1.5 db over any 50 MHz segment, Noise figure: 2.3 dB +/- 0.3 db return loss in & out: >20 dB Output: IP3 +39 dBm or better. IP2 +55 dBm or better Out Comp pt: 1 dB >+26 dBm Each amplifier has it's own independent bias current regulator. External and internal high voltage transient suppressors provide 40kV, 1 micro sec. pulse protection. Internal voltage regulator allows for operation up to +28 VDC but an external dropping resistor is recomended for voltages above +16VDC. Each amplifier has it's own independent bias current regulator. External and internal high voltage transient suppressors provide 40kV, 1 micro sec. pulse protection. DC current requirement is typically 150 mA at +13.8 VDC. Filtering on the DC terminal provides >80 dB attenuation from 25 MHz to several GigaHertz. Tri-metal plated connectors have ptfe (Teflon) dielectric with gold pins and are type N(ss). Dimensions: 3" x 3.5" x 0.9". Top connector mounting. (this posting is the responsibility of the poster) |
