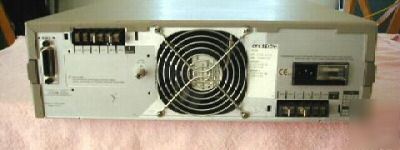

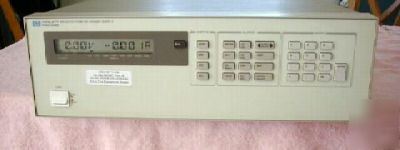

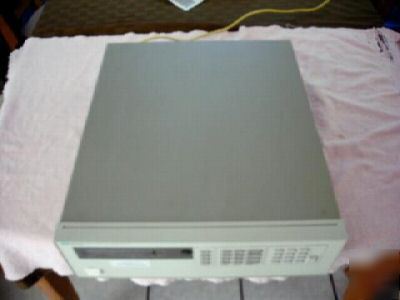

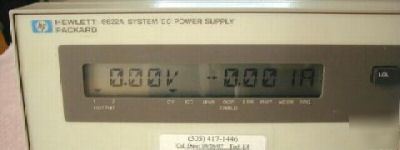

The Agilent 6622A is dual-output, GPIB system power supply. The linear low noise power supply outputs combine with a built in GPIB interface. Simple programming commands ease access to all features and capabilities. Dual ranging outputs provide greater flexibility in available voltage and current. SPECIFICATIONS: *** Two (2) 80W Outputs *** Output 1 & 2: Low-range Volts, Amps: 0 to 20V, 0 to 4A *** Output 1 & 2: High-range Volts, Amps: 0 to 50V, 0 to 2A *** GPIB programming of voltage and current *** Measured voltage and current readback over the GPIB *** Two outputs can be connected in parallel or in series *** Automatic selection of operating voltage and current range *** Programmable over-voltage and over-current protection *** Self-test occurs at power-on from an GPIB command *** Electronic calibration via GPIB *** 10 store-recall states *** SCPI (Standard Comments for Programming Instruments) *** VXI plug&play drivers. Reasonable offers are always well come. REASONABLE ONES! This is my website for more equipment you may need: http://aaaequipmentresources.com/index.html (this posting is the responsibility of the poster) |
