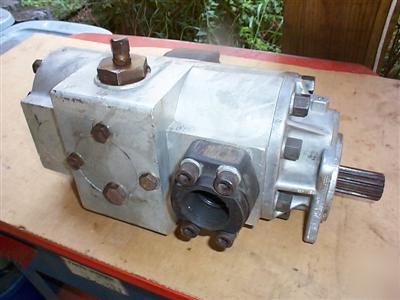

PARKER NSH20 HIGH VOLUME HYDRAULIC GEAR PUMP 98 GPM I purchased this used/but good awile back for a hydraulics project but I didnt realize it wasn't what i needed until I found the spechs from Parker on it! Its a 98 Gal/Min hydraulic gear pump used on some heavy equipment! Heres the specks from Parker: Model: NSH20 series (20300-150) / Section Size:150 / Displac/rev US gal;.0131 (cu/in:3.02)/ Max Pressure 2500 PSI / Bar 172 / RPM 2500 / rotation A or C :::: Pressure sensitive unloading gear pump / 98 GPM / Code 125 (1 1/4" 14tooth shaft splined ). Turns good & sounds good can be used as Clockwise or Counter Clockwise rotation includes both port collars / allen bolts & O rings shown! Very clean - Large port thread size is about 2 3/4" / Small port size is about 1 7/8" / Ft. Mounting Flange 3 1/2" - 3 1/2" center/center / overall length is about 17" from back bolts to frt. tip spline / weight is actual 68lbs! These are very expensive new! Click on the " ME " Link in each items header to see my 2007 Bike Inventory ! http://ansuz.pair.com/lar/BFABanner4[5].jpg http://ansuz.pair.com/lar/LarInlineImage5[5].jpg * ** all MI orders will have a 6% Tax * ** SEARCH MY STORE FOR OTHER ITEMS OFF THIS BIKE: Search titles and descriptions Please advise if theres any listing problems noticed (especially with pictures) Thanks : Lar (this posting is the responsibility of the poster) |
