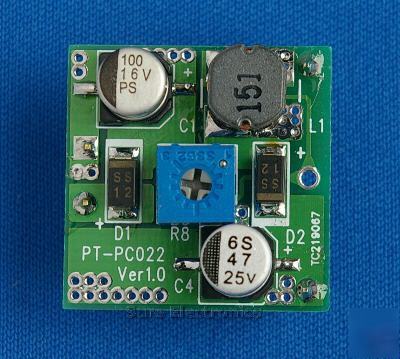

Your Homeland Electronics Store FCB ElectronicsAnn Arbor, Michigan MC34063 Based Switching Regulator Adapter, Step-Up MC34063 Based Switching Regulator Adapter, Step-Up Output Current is no less than 200mA. Output Ripple and Noise: Maximum RMS 300mV @ 12V, 0.2A output. Suggested Input Voltage: +5V ~+12V. Output Adjustable Between: +7~+24V DC. Operation Environment Temperature Range: 0~+55℃. Storage Environment Temperature Range:-25~+85℃. * GND of the board should be connected to GND or the housing of your instrument. * Input voltage must be 2V or even lower than output voltage. * If the load is too heavy, the output voltage may be less than expected voltage. Suggested connection is shown in Figure 1. Figure 1 (View from potentiometer installation side) SAME COST WORLDWIDE for all Mini DC Regulators. LT117 DC-Regulator (Click Image) LM317 DC-Regulator (Click Image) MC34063 Variable DC-Regulator Step Up (Preset 12v) (Click Image) MC34063 Variable DC-Regulator Step Down (Preset 5v) (Click Image) MC34063 DC-Regulators come with free adapter board. (this posting is the responsibility of the poster) |
