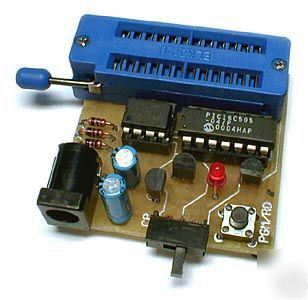

MICROCHIP PIC COPIER DUPLICATOR DUPLI-PIC12C508?/509? is a low-cost hand-held device intended to copy the contents of the master PIC12C508?/509? chip to any number of target chips. It can be quite useful for small to medium volume programming. The Copier has the following features: * Direct support for all Microchip's 8-pin PIC12C508?/509? devices * Includes a ZIF socket for DIP packages * Read Master and Program functions * Reading and programming the complete contents of the chip including Program memory, configuration bits (fuses), ID word * Code protection state of the programmed chip can be chosen by the dedicated switch * Manufacturer approved programming algorithm * Operates as a standalone unit (internal non-volatile buffer: 2K x 8) * Very simple operation control using just one button * Clear indication of the device status by the LED * Safe chip insertion/removal by switching all device pins (including Vdd and Vpp) to ground when idle * Operates from external power supply: 15V / 30mA (not included) The following devices are supported by the Copier: PIC12C508, PIC12C508?, PIC12?509, PIC12C509A. (this posting is the responsibility of the poster) |
