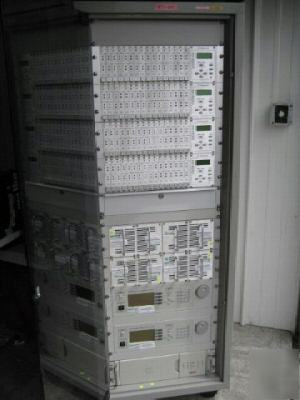

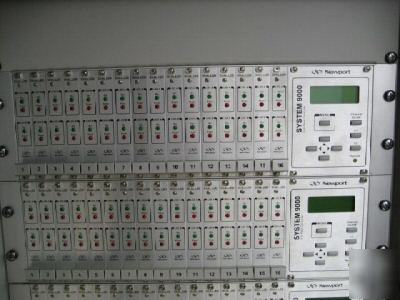

Newport laser burn-in rack system with 128 channel Chip on Submount Dual Output Laser Diode Driver (LDD) modules provide 128-Channels @ 1,500 mA of current and a compliance voltage of 3.5 volts. Both Constant Power (APC) and Constant Current (ACC) modes are available. Constant power mode operation uses a front facet silicon photodiode, which is part of the test fixture. Forward current, forward voltage, and front facet power are all measured at a resolution of 16-bits. Removable fixtures are designed to hold Pirelli's 980nm chip on submount laser diode for the purposes of bum-in. Spring loaded "pogo pins" secure each chip~submount device to a temperature-controlled plate and provide electrical connection with the anode and cathode contact pads. Sixteen (16) laser diodes are loaded into a fixture. Two (2) peltier coolers control the fixture plate temperature. A large area silicon photo diode collects the front facet beam of each laser diode. Each photodiode is angled 8 degrees to prevent back reflections to the laser diode. The temperature between each set of diode is independently measured and recorded for increased temperature accuracy at the COC device. This is achieved using an external data acquisition unit (this posting is the responsibility of the poster) |
