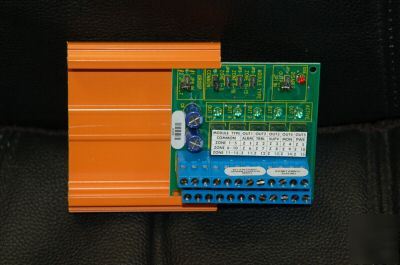

Complete with all original sealed packaging. FireShield Fire Alarm Control Panel Conventional 1, 3, 5 & 10 Zones * Five Form C relays rated at 1 amp each * Functions in zone relay mode or common system mode The Edwards FSRRM Remote Relay Module is one component of the system that sets the Fire Shield ahead of its class. The module has five Form C relays rated at 1 amp each. It can be configured to function in either a zone relay mode or a common system mode. When configured in the zone relay mode, relays energize when the associated IDC is in the alarm state. The module can be configured for activation by IDCs 1-5 or 6-10. One relay is automatically associated with each IDC. When configured in the common system mode, relays energize or de-energize when the panel changes state. One relay is available for each of the following functions: Alarm, Supervisory, Trouble, Power and monitor. The FSRRM mounts on a plastic snap track (included) or the FSRRM-S11 (optional) extended snap track. Each FSRRM-S11 holds up to 4 FSRRMs. Using either snap track the FSRRM can be installed in the MFC-A multi function cabinet or another listed fire alarm enclosure. Panels will support two RRMs of each configuration for a total of six on the 10-zone panel. (this posting is the responsibility of the poster) |
